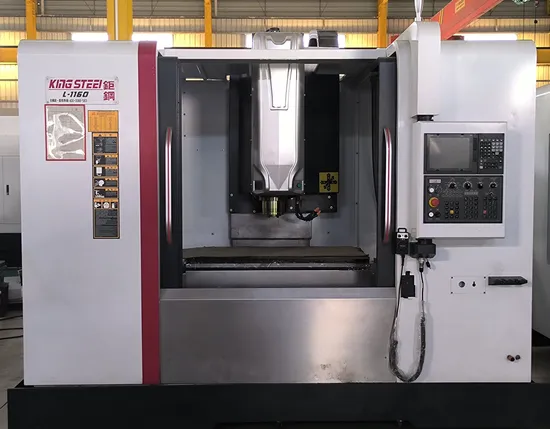

Taiwan Jugang M80A LV-1160 High Precision CNC Vertical Machining Center with CE

Product Description

Technical Data
Model	LV-1160 CNC machining center	MITSUBISHI M80A
	Length x width	1200x600mm
Worktable	T-slot (Width x No. x Distance)	18mmx5pcsx100mm
	Max. loading weight	800kgs
Travel	X axis travel	1100mm
	Y axis travel	600mm
	Z axis travel	600mm
	Spindle nose to worktable	120-720mm
Guide ways(HIWIN)	X linear wide/numbers/blocks	45mm roller/2pcs/6pcs P4 grade
	Y linear wide/numbers/blocks	45mm roller/2pcs/4pcs P4 grade
	Z linear wide/numbers/blocks	45mm roller/2pcs/6pcs P4 grade
Screws(HIWIN)	X/Y/Z screw specific	4012/4012/4012 C3 grade
Spindle(JUGANG and Royal/Kenturn)	Direct spindle speed	12000rpm
	Spindle motor power	11/15KW
	Spindle taper	BT40
	No.of front bearings	NSK 4 pcs
	No.of rear bearings	NSK 2 pcs
3 Axes	X/Y/Z motor power	3/3/3KW
Feed	X/Y/Z feed speeds	36/36/36m/min
	X/Y/Z cutting feed	1-10000mm/min
Accuracy	Positioning accuracy	0.006mm Acc. VDI 3441 Std.
	Repeatability	0.003mm Acc. VDI 3441 Std.
Tool magazine	Tool quantity	24T
	Max tool dia. (Full)	80mm
	Max tool dia. (Empty)	150mm
	Max.tool length	300mm
	Max. tool weight	8kgs
	T-T time	2.2sec
Working conditions	Electricity	3Ф380V,50HZ,20KVA
	Temperature	0-40ºC
	Relative humidity	≤90%
	Air pressure	5-6 bar and 0.2m³/min
Dimension& Weight	Approx. outer dimensions	2900x2500x2750mm
	Approx. weight	6500kgs

Standard configuration

1.Spindle oil chiller

2.Rigid Tapping

3.Automatic power off switch

4.3colors alarm light

4.LED working lamps *2pcs

5.Cooling system (cooling pump*2)

6.Automatic micro lubrication for linears and screws

7.Separate handwheel(MPG)

8.Electric box heat exchanger

9.Fully enclosed sheet metal

10.BT40-24T arm type tool magazine

11.Tool kit

12.Around spindle coolant and compressed air

13.Leveling screws and pads

14.Compressed air blow out through spindle.

15.Chips disc and water tank

16.Back flush chip conveying

17.Water gun and compressed air gun

18.Standard packing

19.3Axes screw and linear covers

20.Ethernet interface

21.USB and CF card interface

22.Transformer(Specification as requirement)

23.10.4'' screen LCD

Our advantage:
1. The machine tool beds are all designed and produced by ourselves. The R&D team is from Taiwan and the machine quality is high. In order to obtain domestic policy support, we chose to produce in Zhangzhou, a Taiwanese investment area. The price will be much lower than that of Taiwanese machines.
2. The casting is made of HT300 and processed using the MEEHANITE process. After more than half a year of natural aging, artificial aging, vibration treatment, and internal annealing treatment, the casting has high stability and is not easy to deform; it is manually scraped to ensure accuracy.
3. We can produce five-axis machines. The machine accuracy reaches Acc. VDI 3441 Std. We have 6 bearings (4 in the front and 2 in the rear).
4. The controllers (FANUC, Mitsubishi, Siemens) and spare parts are all brands with the most stable and reliable quality in the world.
FILES WITH MACHINE:

1.QC report

2.Machine operation manual

3.Foundation drawing

4.Precision testing report

5.Machine circuit manual

6.Controller operation manual

Remark:
1. Delivery time: 30 days.
2. Payment terms: 30% T/T in advance, 70% after inspection before shipping.
3. Warranty: 12months for mechanical parts and 24 month for NC controller since customer receive the machine.
4. Installs debugs the personnel and days: 1-2 people in two days, depends on the customer's needs.
5. Engineer Travel, Installation and commissioning expenses: On buyer.

---
