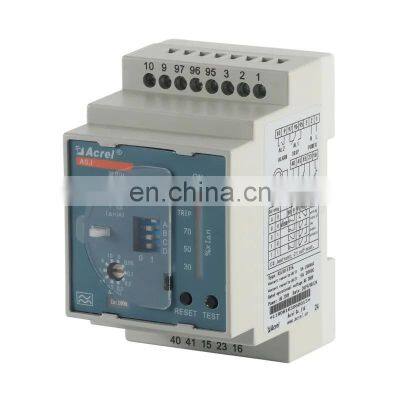

Products DescriptionASJ10-LD1A Residual Current RelayASJ Series Residual Current Relay ACREL ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating current 50Hz, the rated voltage 400V or below.ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.* The measurement of A-type after-current* The streamer display of current percentage;* The setting of rated residual action current* The setting of non-driving time of limitation* Two- pair relay output* Possessing the function of on-the-spot and long- distance testing and resetting* Frequency: 50Hz±5Hz* Auxiliary power supply: AC110V, AC220V, DC85 ~270V (permissible error±10%)* Consumption: ≤5WFrequency50Hz±5HzAuxiliary power supplyAC110V, AC220V, DC85 ~270V(permissible error ±10%)Consumption≤5WInstallationDin rail 35mmDimension(L*W*H)85*54*64mmTypes of ProductTypeFunctionInstallationASJ10-LD1CAC-type residual current measurement;Alarm prompt of current crossing line;Rated residual operating current can be measured;Limit non-driving time can be set;Two sets of relay output; With local and remote “test” and “reset” functions.Guide(DIN35mm)ASJ10-LD1AA-type residual current measurement;Current percentage light column display;Rated residual operating current can be measured;Limit non-driving time can be set;Two sets of relay output (settable)note 1; With local and remote “test” and “reset” functions.ASJ10L-LD1Anote2A-type residual current measurement;Rated residual operating current can be measured;Limit non-driving time can be set;Two sets of relay output (settable);Transformer breakage alarm can be set;Pre-alarm value can be set;Return value can be set.With on-site display, remote "test", "reset" LCD display, 25 event records.ASJ20-LD1CAC-type residual current measurement;Alarm prompt of current crossing line;Rated residual operating current can be measured;Limit non-driving time can be set;Two sets of relay output; With local and remote “test” and “reset” functions.Panel(48*48)ASJ20-LD1AA-type residual current measurement;Current percentage light column display;Rated residual operating current can be measured;Limit non-driving time can be set;Two sets of relay output (settable)note 1; With local and remote “test” and “reset” functions.Note 1: The function of setting for relay means that you can set the initialization and the output state of relay by yourself through the code dialing on the panel; the specific setting guide can be found from the chapter 5.2. Note 2: Optional function, RS485 interface, Modbus-RTU Communication, type is ASJ10L-LD1A/C.Technical ParameterTechnical ParameterIndicatorAC typeA typePower supplyVoltage rangeAC110V、AC220V（±10%）AC/DC85~265VPower dissipation≤5WInputRated residual operating current I△n0.03、0.1、0.3、0.5(A)0.03、0.05、0.1、0.3、0.5、1、3、5、10、30(A)note 3Limit non-driving time △t0.1、0.5(s)0、0.06、0.1、0.2、0.3、0.5、0.8、1、4、10(s)note 4Rated residual non-operating current I△no50%I△n50%I△nPerformance characteristicsSinusoidal ACSinusoidal AC and pulsating DCFrequency50Hz±5Hz50Hz±5HzOperating range-20% ~ -10%I△n-20% ~ -10%I△nOutputOutput modeOne is normally open and another is for transformationOne is normally closed or open, and another is for transformationContact capacity5A 250VAC5A 30VDCAL1:8A 250VAC; 5A 30VDCAL2:6A 250VAC; 5A 30VDCReset modeLocal reset or remote resetLocal reset, remote reset or automatic resetInstallation and use environmentTemperatureRun temperature：-20℃ ~ +55℃，Storage temperature：-30℃ ~ +70℃Humidity≤95%RH，no condensation, and no corrosive gas placesElevation≤2000mClass of pollutionGrade threeInstallation categoryType ⅢNote 3: ASJ10L-LD1A rated residual operating current IΔn is 10mA~30A continuously adjustable;Note 4: ASJ10L-LD1A limit non-driving time Δt is 0~10S continuously adjustable.Wiring IllustrationDimension & InstallationSolution StructureCertificationCompany ProfileFAQTitle goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
>>
