4 Sat-If +1 Terr. Signals CWDM Optical Receiver Satellite TV Receiver

US$95.00-130.00 1 Piece (MOQ)

Basic Info.

Model NO.
SSR-15CW
Type
Indoor
Name
4 Sat-If Satellite Receiver
RF Connector
F-Female
Optical Connector
Sc/APC
AGC Stability
±1dB
Dimensions
195*128*40mm
Frequency Range
47-2150 MHz
Transport Package
Standard Carton
Specification
ROhS
Trademark
SOFTEL
Origin
Zhejiang, China
HS Code
85176229
Production Capacity
10000 PCS/Month

Product Description

4 Sat-If +1 Terr. Signals CWDM Optical Receiver
Features

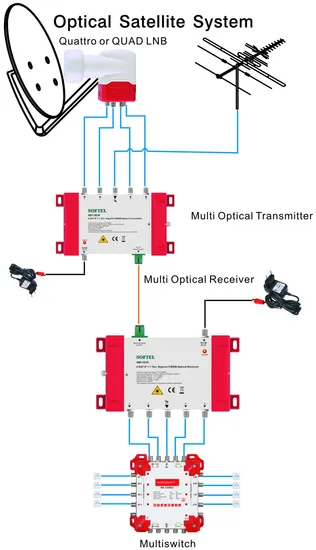

Designed for satellite optical system
Wide operating frequency range: 47-2150MHz
Excellent linearity and flatness
Using 1-core single-mode fiber, high return loss
Build-in CWDM, using high linear PD
Output connected to 5 IN series satellite multiswitch
Build-in optical AGC function
Red-LED for power indication
Smaller size and easier installation
Specification
ITEM
Parameters
FR connector
F-female
Optical Connector
SC/APC
Power Supply
F-female
Input Optical Wavelength
LV-RX: 1510nm
LH-RX: 1530nm
HV+Terr.-RX: 1550nm
HH-RX: 1570nm
Input Optical Power
-10 ~ +3dBm
-7 ~ +2dBm @AGC
Output Impedance
75 Ω
Frequency Range
47-2150MHz
Output Level
≥75dBuV @AGC
AGC Stability
±1dB
Power Supply
20 VDC
Power Consumption
<10 W
Dimensions
195*128*40mm
