High Precision CNC Lathe Machine Ck6140 Flat Bed Turning Lathe CNC Machine

US$8,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK6140
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Swing Over Bed
400mm
Swing Over Cross Slide
230mm
Spindle Bore
65mm
Guide Way Width
360mm
Spindle Taper
Mt6
Transport Package
Wood Case
Specification
big size
Trademark
L&T
Origin
China
HS Code
84581900
Production Capacity
50 PCS/Month

Product Description

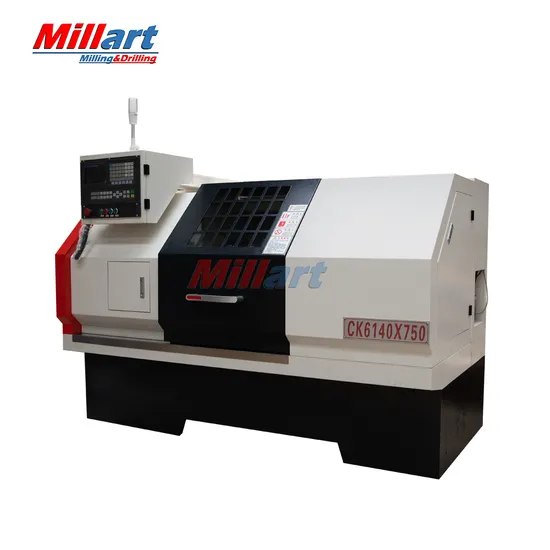

High Precision CNC Lathe Machine CK6140 Flat Bed Turning Lathe CNC Machine
Product Description
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face. It can also turn the single and multiple threads in metric , inch and other standard.
1.high rigidity pedestal and wider lay board are suitable for heavy cutting
2.four station electric turret
3.inverter stepless speed
Product Parameters
Model CK6140
Max. swing over bed 400mm
Max. swing over cross slide 230mm
Max. processing length 750mm
Guide way width 360mm
Spindle bore 65mm
Spindle taper MT6
Spindle speed Variable 200-2000 rpm
Spindle nose A2-6
Spindle motor power 5.5kw
Number of tool post Vertical 4 station electric turret
Max. size of toolshank 20*20
Position accuracy 0.1
Repeat position accuracy 0.005
Tailstock sleeve dia. 65mm
Tailstock sleeve travel 140mm
Tailstock taper MT4
N.W. 1900kg
Machine dimension (L*W*H) 265x155x195cm

Configuration
Siemens808D control system
3-jaw chuck(Φ200mm)
4-station electrical toolpost
Work lamp
Coolant system
Dead centre(MT4)
Centre sleeve(MT4/6)
Oil gun
Tool box
Operation manual
