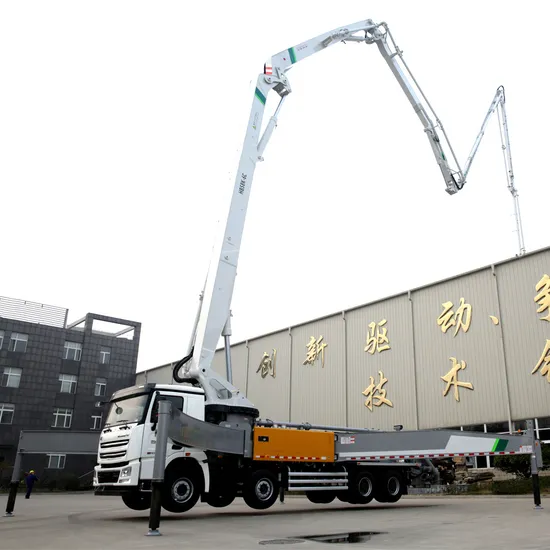

New 62m Concrete Pump Truck Hb62V

Product Description

New 62m Concrete Pump Truck HB62V

CATEGORY	ITEM	UNIT	HB62V
Overall	Outline dimension	mm	15610×2530×3990	14600×2530×4000
	Oerall weight	kg	44000	44000
	Brand	--	Sinotruk	Bens
Chassis	Model	--	ZZ5447V466HE1	Actros 4141E5
	Wheelbase	mm	2500+4300+1400	"2020+4280+1350/ 2300+4000+1350"
	Max.power	kW	294	300
Engine	Emission	--	ChinaV	ChinaV
	Theoretical	m³/h	170
Pumping system	Concrete pumping pressure	MPa	8.6
	Theoretical pumping times	num/min	22~24
	Delivery cylinder diameter ×stroke	mm	φ260×2200
Placing boom	Reach height	m	61.1
	Reach depth	m	43.6
	Slewing radius	m	55.9
	Slewing angle	°	±270
Others	Transfer tuble	--	Rock valve

All-around technical methods are used to make boom safer and more reliable. A new generation of micro-control technology is used to make boom operation steadier and more accurate. 2. Lower Structurre of High Rigidity On the basis of the design concept of high rigiditystructure, simulative calculation and testing offull-work-condition loading make chassis structuredeformation smaller and overall work stability. Higher. 3.Hydraulic System of Outstanding Performance MPS (micro shock) reversing buffering technology;The buffering process is steadier and more reliable, with smaller impact;The reversing time is shortened to be less than 0.1s and the efficiency is improved by more than 6%.SCHWING Germany's hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.Ultra-low pressure loss hydraulic system, coordinated with efficient rock valve pumping system and power matching control system for oil-saving can help pumping system fully absorb engine power regardless of different concrete, without wasting a dip of fuel, and the average oil consumption is as low as 0.362L/m³.

---
