Product Details
Product Description
Product Description

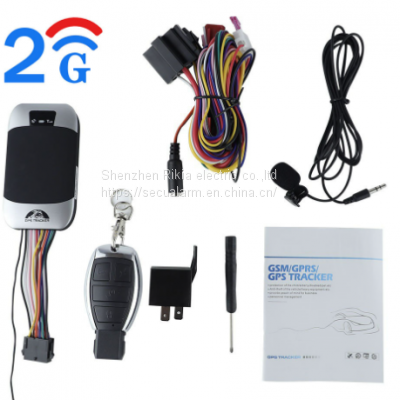

Car locator Car theft alarm department helps with GPS tracke
Estimated weight and volume: 0.38Kg per set number of packages: 50pcs/ carton standard: 53*32*38CM
1. Instructions
1.1. Install the terminal
6.1.1 Select qualified installation engineers for the installation.
6.1.2 The installation environment should not exceed the GSM performance specifications.
6.1.3 Installation Position Dustproof and waterproof.
6.1.4 Find the 12PIN wiring harness that comes with the product, insert it into the corresponding wiring hole of the product, and connect the original circuit as shown in the following figure:
Mainframe wiring diagram
6.1.5 The pink wire can be connected to the original car alarm horn or the alarm horn purchased randomly.
6.1.6 Understand whether the trigger type of vehicle door is positive trigger or negative trigger. The positive trigger is connected to the green line, and the negative trigger is connected to the blue line.
6.1.7 Install the emergency button where you can touch it.
1.2. SIM card placement
6.2.1 Open the sealing buckle with the delivered screwdriver and insert the SIM card. If you hear the sound of the lock card, it indicates that the SIM is properly placed. When retrieving the card, tap the SIM and it will pop up automatically. If the storage function is required, insert the mini SD card at the same time, and then restore the sealing buckle.
6.2.2 Make sure that the SIM card must be on the GSM network, the caller ID display must be enabled, the PIN code is disabled, and the call transfer function cannot be enabled. SMS messages must be in plain text format, and PDU format cannot be identified.
1.3. Start the device
Connect the red and black lines of the positive and negative poles of the power supply to the 12V or 24V power supply of the car, and turn on the standby power switch after the host works normally for 1 minute.
1.4. GSM/GPS signal indicator light
Red light: the charging state is steady on and goes off when it is fully charged. The low-current red light of the built-in battery blinks quickly.
Green: The GSM signal blinks once every two seconds when it is normal, and the GPRS state blinks once every three seconds when no GSM network is steady on.
Blue: The GPS signal blinks once every second when it is normal.
>>
