30HP 60HP Thin Veneer Saw Stone Granite Cutting Machine for Tiles Corners

US$15,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
30HP 60HP Stone Cutting Machine
Type
CNC Cutting Machine
Usage
Ceramics, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
Low Speed
Control
Control Panel
Certification
CE
Blade Diameter
750mm-1200mm
Blade Number
Single or Dual
Electric
3phase, 380V, Customized
Stone Type
Granite, Marble, Basalt, Limestone etc
OEM
Available
Finished Stone
Veneer Stone, Corner Stone
Transport Package
Nude Packing
Specification
3300mm*2180mm*2180mm
Trademark
BESTLINK
Origin
China
HS Code
84791090
Production Capacity
100 Sets/Month

Packaging & Delivery

Package Size
285.00cm * 190.00cm * 180.00cm
Package Gross Weight
2300.000kg

Product Description

30HP 60HP Thin Veneer Saw Stone Granite Cutting Machine for Tiles
The mighty stone saw is compact, portable, and lighter - making the task of hauling much easier. This model comes with a smaller and faster 30 in. blade for quicker cutting of your everyday stones.
Effectively changing the stone cutting industry,
This mighty stone saw has been designed to be safe, sturdy and simply low maintenance.
Every aspect-from components to assembly-was designed to fit all the below criteria and do it at a reasonable price.
Technical parameter sheet for the mighty stone saw
model VS-30 VS-30D VS-60 VS-60D
Dimensions (L*W*H)(mm) 2850*1900*1800 3050*3000*1800 3300*2180*2180 3550*3500*2200
Machine Weight(kg) 2300 4500 3200 6000
Main Motor Power(kw) 22kw(30HP) 22kw(30HP)*2 45kw(60HP) 45kw(60HP)*2
Electricity 3 phases,380V,50Hz(customizable)
Amperage 86/43A (86/43A)*2 172/86A (172/86A)*2
Water Consumption(m³/h) 3.5 4 4 4
Blade Size(mm) 800 1000&1200
Blade Speed Standard(adjustable) Max.900rpm. Max.780rpm.
Max.stone heigh(mm) 0-350 0-450
Saw blade adjustable distance(up/down)(mm) 0-120 0-250
Saw blade adjustable distance(back/forth)(mm) 0-200 0-250
Max.stone thickness(mm) 20-220 20-270
Conveyor Belt Length*width*thickness(mm) 5970*280*7 6800*400*7
Conveyor Belt Speed(Adjustable)(mm/min ) 600-2450 600-2450
Max.Cutting Depth(mm) 280 350-450

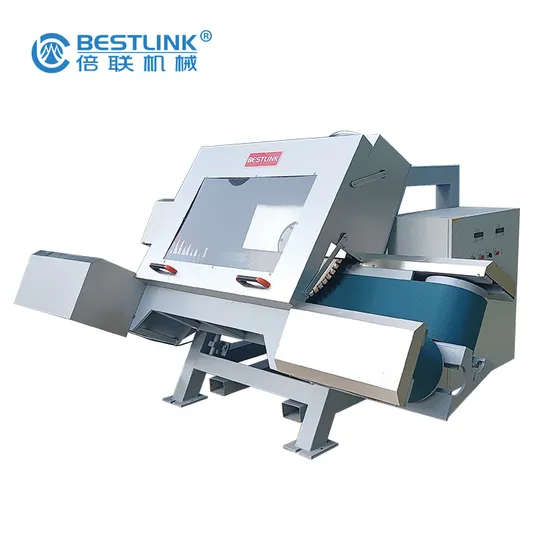

Pictures for the Thin Veneer Saw Machine Detailes:
Veneer stone saw is loading and shipping to Norway
