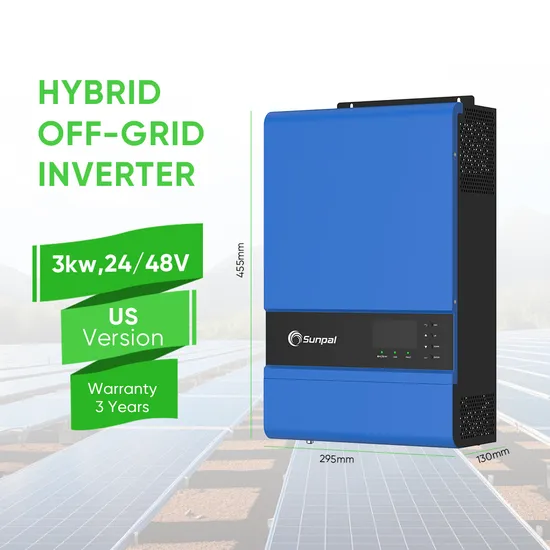

Sunpal Inversor De Corriente Hibrido 3Kw 3000W 24V Mppt Solar Hybrid Inverter

Product Description

Product Description
Features: split Phase 120V/240V; Rated power 3KW, power factor 1;
Built-in MPPT solar charge controller;
High frequency inverter with compact design;
Pure sine wave AC output;
Battery Voltage 24V/48V Ones;
Parallel operation up to 6 units;
WiFi/GPRS remote monitoring (optional);
RS485 communcation for BMS (optional).
Product Parameters

Model	Sunpal-MHP 3000LV-24 3000VA / 3000W	Sunpal-MHP 3000LV-48 3000VA / 3000W
Rated Power
System DC voltage	24VDC	48VDC
Splite phase operation	Yes, need at lest 2 units in parallel	Yes, need at lest 2 units in parallel
Parallel operation	Up to 6 units	Up to 6 units
Monitoring Option	WiFi or GPRS	WiFi or GPRS
Output
AC Voltage	110/120VAC	110/120VAC
Peak Efficiency	93%	93%
Transfer Time	10ms (For Personal Computers); 20ms(For Home Appliances)
Waveform	Pure Sine Wave	Pure Sine Wave
Solar Charger & AC Charger
Max. PV Array Open Circuit Voltage	145V	145V
Max. PV Array Power	2000W	4500W
Operating Voltage MPPT Range	60~115VDC	60~115VDC
Max. Solar Charge Current	80A	80A
AC Input Voltage Range	65~140VAC	65~140VAC
Frequency Range	50Hz/60Hz	50Hz/60Hz
Max. AC Charge Current	60A	40A
Max. Charge Current (PV+AC)	140A	120A
Physical
Demension	455×295×130mm	455×295×130mm
Weight	11.5kg	11.5kg
Communication Interface	USB/RS485	USB/RS485
Environment
Humidity	5% to 95% Relative Humidity (Non-condensing)	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	0°C~50°C	0°C~50°C
Storage Temperature	-15°C~60°C	-15°C~60°C

System Diagram This is a multi-function split phase US version inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
