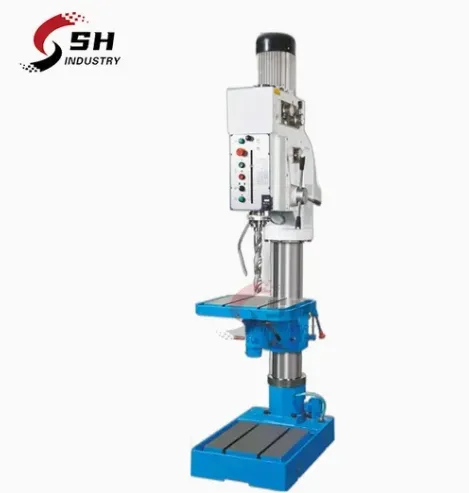

Metal Drill Vertical Stand Drilling Machine (Pillar Drill Machinery Z5040 Z5050)

Product Description

Metal drill Vertical stand Drilling Machine (Drill Machinery Z5040 Z5050)
Product Description
Characteristics:
1 .Novel design and beautiful appearance, the structure of the chips, a wide range of variable speed.
2 .Unique working table, electric and manual lifting mechanism, easy to operate.
3. the table can rotate 180 degrees or 45 degrees, and it can be used for a wide range of application.
4.The is provided with a cooling device and tapping device.
5 .Electrical system to implement the IEC electrical standards, with a short circuit and overload protection function, the main motor power large.
6 .Unique protective devices, safe and reliable.
Application:
Suitable for drilling, reaming, reaming, tapping screws, spot facing machining, and batch production is a single ideal machine.
Main technical Specifications:

Specifications	Units	Z5040	Z5050
Max. Drilling capacity	mm	40	50
Max. Tapping capacity	mm	M27	M30
Diameter of column	mm	160	180
Spindle travel	mm	180	240
Distance spindle axis to column generating line	mm	360	360
Max. spindle nose to table	mm	590	570
Max. spindle nose to base	mm	1180	1160
Spindle taper		MT4	MT4 or MT5
Spindle speeds range	r/min	42-2050	42-2050
Spindle speeds series		12	12
Spindle feeds	mm/r	0.07 0.15 0.26 0.40	0.07 0.15 0.26 0.40
Dimension of worktable surface	mm	550x470	550x440
Table travel	mm	550	550
Dimension of base table	mm	450x440	450x440
Overall height	mm	2330	2380
Spindle motor power	K w	2.2/2.8	2.2/2.8
Coolant motor	w	40	40
G.W/N.W	kg	815/755	1045/985
Packing dimension	cm	108x62x245	108x62x245

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
