US$6.80
|
6,000 Pieces
(MOQ)
|
Basic Info.
Model NO.
LXSG(R)-13D3~25D3
Medium Temperature
Cold Water
Counter Instructions
Digital
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Production Capacity
100000PCS/Month

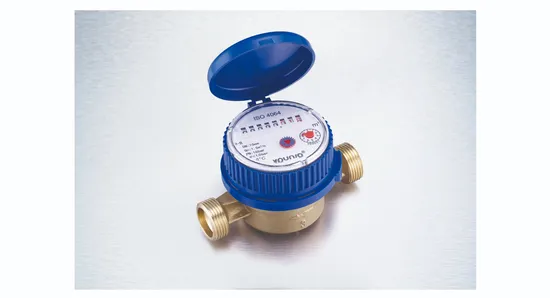

Product Description
DEFINITION:
Set of moving device that fitted into a closed conduit driven directly by water flow. Its turbine rotor rotates about the axis which is perpendicular to water flow.
WORKING PRINCIPLES:
Water flow drives vane rotate. Rotating times which is proportional to water flow speed are gathered, hence total volume passed through water meter is recorded.
CHARACTERS:
Types: Wet, dry, vertical, liquid sealed.
Wide measuring range, high accuracy.
Stable measuring capacity
Long working life
Low pressure loss
All technical figures are conformed with GB/T778.1~3-1996 which is equivalent to ISO4064 Standard Class B.
WORKING CONDITION:
Water temperature≤ 45ºC(Hot water meter≤ 90ºC)
Water pressure≤ 1Mpa
MAXIMUM PERMISSIBLE ERROR:
From the minimum flow-rate (qmin) inclusive to the lower zone of the transitionalflow-rate (qt) exclusive: ± 5%.
From the transitional flow-rate (qt) inclusive to the higher zone of the maximum flow-rate (qmax) exclusive: ± 2%(hot water meter± 3%. )
DN/Q | Q4=1.25Q3 | Q3 | R=Q3/Q1 | Q2=1.6Q1 | Q1 | R=Q3/Q1 | Q2=1.6 | Q1 |
l/h | l/h | l/h |
15 | 3125 | 2500 | 80 | 50 | 31.25 | 100 | 40 | 25 |
20 | 5000 | 4000 | 80 | 80 | 50 | 100 | 64 | 40 |
25 | 7875 | 6300 | 80 | 126 | 78.75 | 100 | 100.8 | 63 |
32 | 12500 | 10000 | 80 | 200 | 125 | 100 | 160 | 100 |
40 | 20000 | 16000 | 80 | 320 | 200 | 100 | 256 | 160 |
Nominal size DN(mm) | Class of measurement | Overload flow-rate q s (m/h) | Permanent flow-rate q p (m/h) | Transitional flow-rate q t (l/h) | Minimum flow-rate qmin(l/h) |
15 | B | 3 | 1.5 | 120 | 30 |
20 | B | 5 | 2.5 | 200 | 50 |
25 | B | 7 | 3.5 | 280 | 70 |
32 | B | 12 | 6 | 480 | 120 |
40 | B | 20 | 10 | 800 | 200 |
Overall dimensions and weight
Type | Size (mm) | Length (mm) L | Width (mm) W | Height (mm) H | Connecting Thread D | Weight (kg) |
LXSG(R)-13D3 | 15 | 110 | 77 | 80 | G3/4"B | 0.57 |
LXSG(R)-20D3 | 20 | 130 | 77 | 80 | G1"B | 0.67 |
LXSG(R)-25D3 | 25 | 160 | 77 | 80 | G1 1/4"B | 0.91 |
LXSG(R)-32D3 | 32 | 160 | 101.5 | 120 | G1 1/2"B | 1.41 |
LXSG(R)-40D3 | 40 | 200 | 101.5 | 120 | G2"B | 1.65 |
>>
