Corrosive High Temperature Resistant Carbon Steel PTFE Lined Straight Pipe Tube
US$10.00
1-999 kg
US$9.90
1,000-9,999 kg
US$9.00
10,000+ kg
Basic Info.
Model NO.
FF-8898
Water Absorption
＜0.01%
Contraction Percentage
＜0.4%
Tensile Strength
3.6MPa
Transport Package
Steel Welded Package
Specification
customized
Trademark
Yihao
Origin
Jiangsu China
HS Code
3904610000
Production Capacity
5000000
Product Description

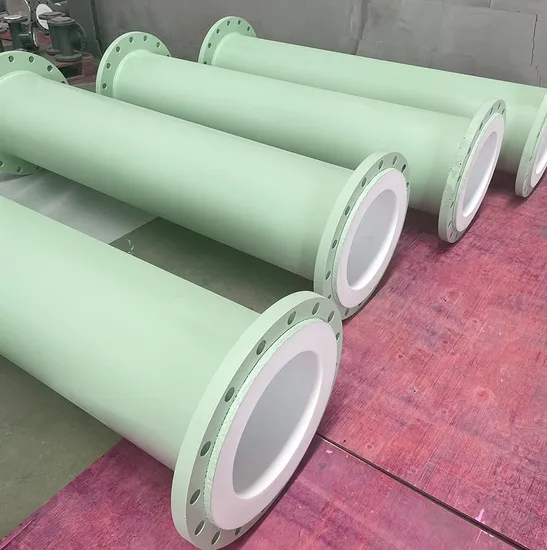

Product Description Yihao Pipes Lined in PTFE or PO The life of pipeline systems increases due to absence of corrosion PTFE lining safeguards and enhances better working conditions as leakage does not occur and subsequent harmful gases and vapors do not evaporate in the atmosphere. The cost incurred in maintenance, repairing and time lost can be minimized. A wide variety of chemicals can be used through a PTFE lined system, making it more flexible and economical. Abrasion and wear resistant while maintaining nonstick and high purity characteristics. Detailed Photos Product Parameters Material: Molded steel lined in PTFE Working temperature: -50ºC~+240ºC Working pressure: -0.09~2.5 MPa Allowable Medium: Look up "Anti-Corrosion Handbook" Pipeline designing: 1.After pipe was lined, diameter is smaller than nominal diameter. 2.Movable flange should be less in order to install conveniently and used safely. 3.Lined pipe flange seal-face has smooth treatment. We suggest there is no gasket between flanges. Certifications Packaging & Shipping Production Display
