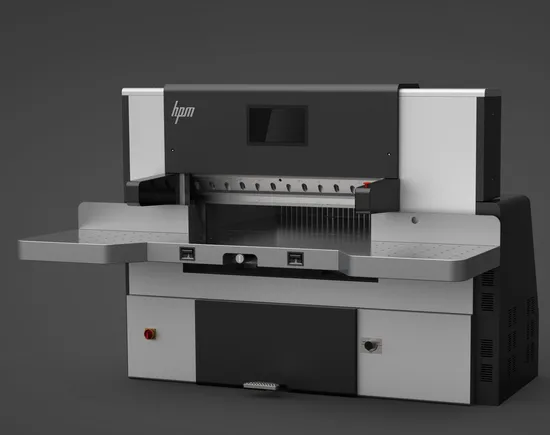

Automatic Guillotine Machine Paper Cutter Precision Cutting Guillotine Machine Slitting Equipment

Product Description

Paper Cutting Mchine(HPM92/115/130/137/168//188)--S22
Technical Parameter

Model	Unit	92	115	130	137	168	188
Max.Cutting Width	cm	92	115	130	137	168	188
	inch	36.2	45.3	51.2	53.9	66.1	74
Max.Cutting Length	cm	92	115	130	145	168	188
	inch	36.2	45.3	51.2	57.1	66.1	74
Max. Cutting Height	mm	120	165	165	165	165	165
	inch	4.7	6.5	6.5	6.5	6.5	6.5
Min. Cutting Size (without false clam plate)	mm	25	30	30	30	30	30
	inch	1	1.2	1.2	1.2	1.2	1.2
Min. Cutting Size (with false clamp plate)	mm	90	90	90	90	90	90
	inch	3.5	3.5	3.5	3.5	3.5	3.5
Front Table Length	cm	63.2	71.5	73	73	75	75
	inch	24.9	28.1	28.7	28.7	29.5	29.5
Max.Clamp Pressure	N	30000	40000	40000	45000	60000	70000
Max. Cutting Speed	time/min	45	46	46	46	46	46
Main Motor	KW	3	4	4	4	8.5	8.5
Net Weight	Kg	2300	3700	3900	4100	6200	6600
Gross Weight	Kg	2500	4100	4300	4500	7000	7400
Packing Size(L×W×H)	cm	228×140×188	285×190×210	285×190×210	310×190×210	360×205×220	380*205*220

Floor Plan

model	unit	A	B	C	D	E	F	G
92	cm	215	232	92	90	157	60	70
	inch	84.6	91.3	36	35.4	61.8	23.6	27.6
115	cm	259.7	265	115	90	172	70	75
	inch	102.2	104.3	45	35.4	67.7	27.6	29.5
130	cm	275.5	280	130	90	172	70	75
	inch	108.5	110.2	51.2	35.4	67.7	27.6	29.5
137	cm	285.5	287	137	90	172	70	75
	inch	112.4	113	54	35.4	67.7	27.6	29.5
168	cm	313	368	168	90	178	75	100
	inch	123.2	144.9	66.1	35.4	70	29.5	39.4
188	cm	346	388	188	90	178	75	100
	inch	136.2	152.8	74	35.4	70	29.5	39.4

Machine System
Safety parts
1.It adopts inside electronic knife locker, which can effectively avoid knife-sliding.
2.Adopts main motor overloading protection safety device for cutting, infrared photoelectric protection, and buttons by two hands safety devices.
Packing Content
1.Mechanical assistance device for knife
replacement
2.Illuminated working surface/optical cutting line
indicator
3.A tool box with tools
4.Operating instruction
5Computer manual and spare parts list
6.It has total 2 HSS knives
Frame construction
Adopts high stiffness linear guides and high precision gapless lead screw to ensure backgauge accuracy and effectively improve the anti-impact capability against unidirectional impact.
Hydraulic Control System
Adopts double hydraulic control system which is composed of two hydraulic circuits. When press the footpedal, the hydraulic oil goes through the primary hydraulic circuit made up of reducing valve and spillover valve, and gives the cutting paper micro pressure. At the time of cutting paper, put thousands of kilograms of high pressure to ensure the cutting quality and safe operation.
Computer System
22 inch full touch display screen, with program setting. Can parse PDF, JDF format files, and can parse various irregular spelling files. Automatically generate cutting size and pictures of cut products. Computer automatically guides workers to cut. Reduce the requirement for personnel and avoid errors. Computer with wired network, wireless WIFI connection function, leaving a U disk interface can be directly from the computer to read or copy files, analysis. Support scanning two-dimensional code, easy to find the generation of files to be cut, direct access to the program, to avoid the tedious steps of manual search. Program storage capacity is 300 programs, each program can store 200 items cutting size. Display precision is 0.01mm; Voice messages are equipped to make users judge equipment conditions correctly. Paper pusher speed up to 38m/min. Our service and application
