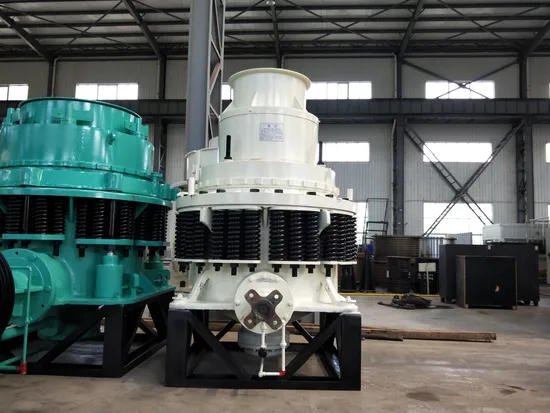

Py Series Small Copper Ore Spring Cone Crusher with Short Head Cone

Product Description

Detailed Photos
Product Description Cone crusher is widely used in metallurgy, construction, road building, and chemical and silicate industrial.It is suitable for crushing varies of ores and rocks with medium and above medium hardness. It has the features of high crushing force, high production efficiency, large capacity, low operation cost, convenient adjustment and economical operation. It has long life span because of reasonable material selection for spare parts and structural design. Meanwhile, even size of production reduces cycle load. The hydraulic chamber-cleaning system in medium and large-sized crushers reduces the downtime of the machine. There are many chamber types for each machine, so customers have many choices to meet their demands. This series crusher can be divided into standard type and short head type.
Generally speaking, standard type has the features of large feed size and coarse discharging size. The short head type has steep crushing awl and its feeding material size is small, which is suitable to produce superfine crushed materials. Therefore, the standard type is used for coarse and medium crushing and the short head type used for medium and fine crushing.
Product Advantages 1. Unequaled output and uniform product throughout a wide range of capacities;
2. High working efficiency, greater crushing force;
3. Largest head displacement provides greater production capacity;
4. Long lasting bearing with stand crushing loads and severe environmental conditions;
5. Hydraulic controls providing fast setting changes and simply clearing;
6. Long working life, low operating and maintenance costs;
7. All parts can be exchanged with Nordberg Symons cone crusher.
Product Parameters

Model	Broken cone diameter (mm)	Max feeding size (mm)	Discharge size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
PYB600	600	65	12-25	40	30	5
PYD600		35	3-13	12-23		5.5
PYB900	900	115	15-50	50-90	55	11.2
PYZ900		60	5-20	20-65		11.2
PYD900		50	3-13	15-50		11.3
PYB1200	1200	145	20-50	110-168	110	24.7
PYZ1200		100	20-50	42-135		25
PYD1200		50	8-25	18-105		25.3
PYB1750	1750	215	25-50	180-360	160	50.3
PYZ1750		185	10-30	80-210		50.3
PYD1750		85	5-13	60-180		50.2
PYB2200	2200	300	30-60	420-700	280-260	80
PYZ2200		230	10-30	130-410		80
PYD2200		100	5-15	80-200		81.4

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
