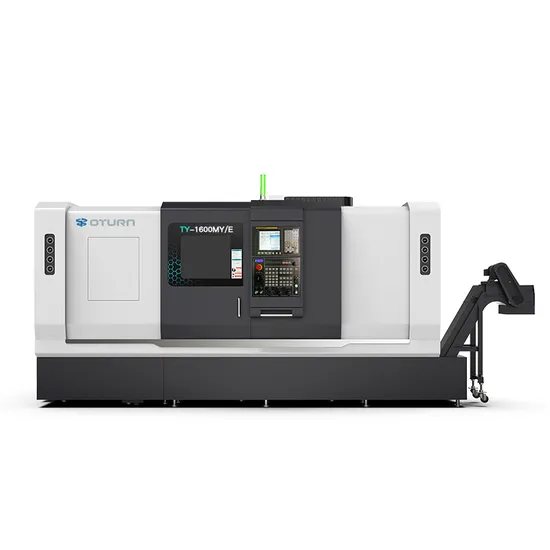

Advanced CNC Turning Center Turret Lathe with Mitsubishi and A2-8 Spindle

Product Description

Product Description
Crafted with robust HT300 high-strength one-piece structure casting iron bed, featuring a 30-degree step type flat rail design, enhanced through finite element analysis, offering superior mechanical rigidity and stability. This ensures long-term reliable accuracy, exceptional processing stability, and prolonged tool life. The bed undergoes stress relief treatment to improve precision and stability. The high-strength roller rail system incorporates a screw pre-tension design, enhancing response rigidity.
1.Direct drive synchronous electric spindle: equipped with a magnetic ring type incremental encoder (Sine and cosine) for positioning accuracy of 20 arc seconds, and C-axis indexing accuracy of 40 arc seconds.
This design effectively eliminates spindle vibration, with nose end deflection accuracy within 0.002mm. Enhances workpiece surface finish.
Rear-mounted rotor simplifies installation and maintenance.
The spindle motor includes a cooling system to mitigate thermal displacement, ensuring consistent spindle temperature. The dynamic balance test passed spindle system guarantees precision retention, high rigidity, and efficiency, enabling finishing, rough machining, and heavy cutting. Ideal for mass production of complex, high-finishproducts.
2. High-rigidity integral servo power turret. The Y-axis with 100MM stroke (±50 from center line) enables eccentric milling, drilling, and tapping. Equipped with a high-torque power turret and servo-driven C-axis, it processes complex parts with ease. The tool holder installation utilizes a high-rigidity BMT interface, with power transmission driven by servo spindle motor.
3. Equipped with THK linear guide rail and ball screw, the heat-treated and precision-ground ball screw ensures optimal precision and durability. Each axis features direct transfer shaft structure and double-anchor pre-relay, minimizing thermal displacement and enhancing machining accuracy. High-rigidity, large-size, heavy-duty linear slide rails maintain machine accuracy under impact, offer smooth displacement, low noise, and extend service life.
4. Standard configuration includes FANUC system, with feed drive powered by FANUC servo motor.
5. A perfect hydraulic and lubrication system featuring high-quality hydraulic pumps and valves significantly reduces failure rates. The design is simple yet reliable.
6. The high-rigidity structure and integral hydraulic tailstock eliminate vibration, providing exceptional stability. Sleeve telescoping is achieved through a hydraulic cylinder, ensuring convenience and reliability.
7. Incorporates a Taiwan rotary chuck, oil cylinder, and automatic chip removal device, reducing operator labor intensity and enabling safe, efficient production. Functional components are programmable, with customizable fixtures available to meet specific user requirements.
Product Parameters

Item	Unit	ETY1600MY/E
Max. swing diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ450
Max.Swing Over Cross Slide	mm	Φ450
Max. processing length	mm	1450
Spindle nose	/	A2-8
Max. spindle speed	rpm	2200
Hydraulic Cylinder/Chuck	/	10"
Spindle bore diameter	mm	Ф86
Bar diameter	mm	Ф76
Spindle motor power	Kw	17/25
Spindle motor power	Nm	180-400
X/Z/Y travel	mm	270/1540/120(±60)
X/Z axis rail specification	spes	45 Roller
X/Z shaft wire specifications	mm	4012
X/Z/Y motor power	kw	3.0/3.0/1.8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z/Y axis moving fast	m/min	24/24/8
The turret tower type	pcs	BMT65-12T
Power cutter tower motor	Kw/Nm	7.5/47.8
Max. speed of	rpm	6000
The turret specifications	mm	25X25
Circular cutter holder specification	mm	Φ50
The adjacent tool change time	sec	0.2
Hydraulic tail seat	/	Hydraulic tailstock
The biggest stroke of the tail	mm	1200
Morse Slide way	type	Mosh5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	100
Machine size	mm	4300x2110x2100
Machine Weight	kg	8200
Cutting fluid tank volume	L	350
Cooling water pump power	W	750
Volume of hydraulic unit box	L	50
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2
Auto lube pump motor power	W	50
