1000L Stainless Steel Steam Heating High Shear Emulsification Tank

US$2,500.00-7,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
LRG1000
Application Area
Food
Certification
CE, ISO
Condition
New
Heating Method
Steam Heating
Main Material
Stainless Steel
Mixing Drum Shape
Disc
Stirring Type
Spiral
Working
High Speed Mixer
Capacity
1000L
Heating Mode
Steam Heating
Mixing Power
7.5kw
Mixing Speed
1280rpm
Material
SUS304
Number of Layer
Two-Layer
Thickness
4/3mm
Structure
Closed with Manhole
Discharge
at The Bottom
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
SUS304
Trademark
Wanyuan
Origin
Wenzhou China
HS Code
8413190000
Production Capacity
5000

Product Description

1000L ss electric heating high shear emulsification tank/emulsifying tank
1. Made of stainless steel 304/316
2. Used to mixing liquid product
3. Mixing speed can be customized
How to select the suitable emulsifying tank:Emulsifying tank Capacity: 100-1000L customizedSuitable Temperature: 0-180 celsium degree or higher upon requirementPower supply: 380V/50Hz/3Phase or customizedConstruction Material: 304/316L optionalStructure: 3 layers(inner layer, jacket, insulation layer)Surface: Inner/outer polishedApplication: Can be used to mix and melt all kinds of materials in industries like pharmacy, cosmetics, chemicals, resins, paintings, confectionary, pigments and etc..
Emulsifying tank application:
Emulsifying tanks is an ideal one for mixing and emulsifying process applied by the trades of medicine, chemical and foodstuff.
Stainless steel variety of types: Stainless steel emulsifying and mixing tank seriesStainless steel storage tank seriesHomgenizer and vacuum mixing tank
Homogenizing and emulsifying machineryHerbal Extraction and concentration/evaporation machinery

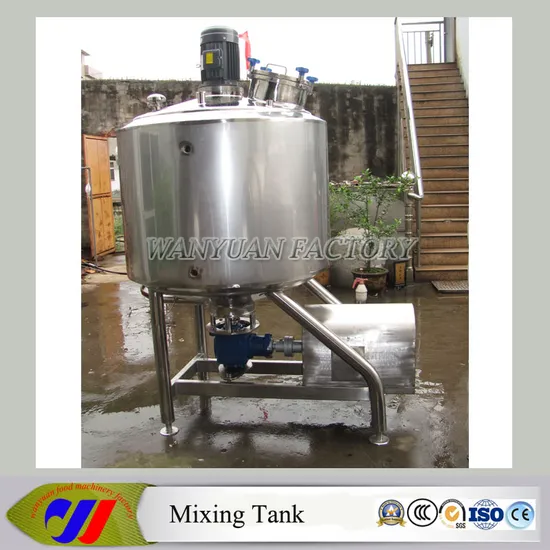

Emulsification tank pictures:
Emulsion motor:
Exhaust valve:
Emulsifying tank functional description:
1. Triplicate mixer in main kettle make structure concisely and economize seal step and installation space. All components made strictly according to excellent craft. 2. Since mechanical seal kept clean and lubricated enough, the main kettle seal is also steady and safe even under high temperature and speed conditions. 3. Mix speed: 0~100rpm, inverter various speed adjustment; Timing adjustment of mixing. 4. Mix model could be assembled optimized according to specific material. 5. Inlet material with vacuum valve is proper for powder material craft and resolve problems of powder flying and unbalanced blending thoroughly. 6. Running in condition of super vacuum, the whole process achieves special pharmaceutic requirement of sanitation and asepsis. 7. Main kettle assembles CIP cleanness system. Part of touch with material is made of SS304 or SUS316L material imported, also managed with mirror polishing and roughness achieving to sanitary degree of 300EMSH. 8. The whole equipment made by according to GMP requirements.
TIPS:
We are manufacture of stainless steel emulsifying tank steam heating or electric heating.
If you are in need of any tanks, please let me know your detail request, so that we can customized the tank for you.
Wenzhou wanyuan food machinery factory--Emulsifying tank
The below is Emulsifying tank specifications:
Model Diameter (L) External diameter (mm) Height (mm) Motor Power (kw) Motor Speed (r/min)
WY-600 600 790 2200 7.5 2800/1400
WY-1000 1000 1040 2500 11 2800/1400
WY-1500 1500 1200 2650 15 2800/1400
WY-2000 2000 1350 2900 18.5 2800/1400
WY-3000 3000 1525 3100 22 2800/1400
