1250 PP Automatic Filter Press Price for Wastewater Sludge Press

Product Description

1250 PP Automatic Filter Press Price For Wastewater Sludge Press
Product Description This filter press is for wastewater sludge press. The Chamber filter press can be manual, semi-automatic, or automatic handling. The filter chamber of the box filter press is composed of two adjacent concave filter plates.
Detailed Photos
How to work:

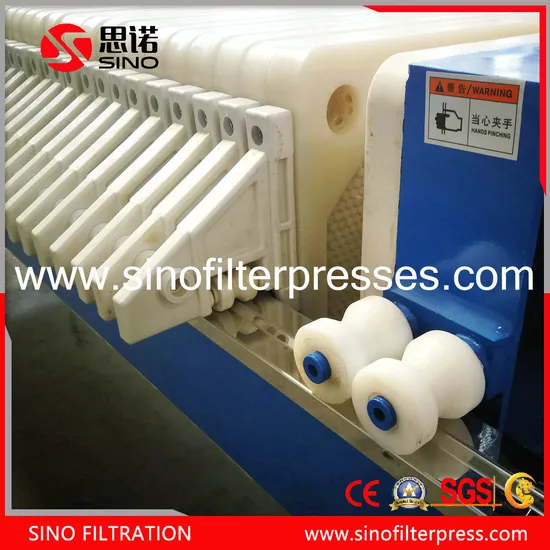

The surface of the filter plate has pits and bosses to support the filter cloth. There are handles on both sides of the filter plate, which are supported on the beam, and the filter plate is pressed by the pressing device. The filter cloth between the filter plates acts as a seal. Under the pressure of the feeding pump, the material liquid that needs to be filtered is sent to each filter chamber, and the solid and liquid are separated through the filter medium (select the appropriate filter cloth according to different industries). A filter residue is formed on the filter cloth until the filter chamber is filled to form a filter cake. The filtrate passes through the filter cloth and flows along the groove of the filter plate to the lower outlet hole channel for centralized discharge. After the filtration is completed, the filter residue can be washed with clear washing water. After washing, compressed air is sometimes introduced to remove the remaining washing liquid. After filtration, open the filter press to remove the filter cake (the filter cake is stored between two adjacent filter plates), clean the filter cloth, and re-press the plate filter to start the next working cycle.
Chamber Filter Press Specification :
Advantages: Less loss and higher efficiency when feeding, and the filtering speed is fast. High-pressure resistance, low moisture content, good effect. When compared to frame and plate filter press, the cost is lower. The filter plate is also durable, but the level of automation is high. The cake can be removed automatically. The high temperature can be 100°C. The pressure of each filter chamber is uniform, and the plate is not easily damaged, and the application field is wider. Applications:
Related Products We have all kinds of filter presses for your option: membrane filter press, chamber filter press, cast iron filter press, round plate filter press, stainless steel filter press, etc. If you are interested in our filter press machine, please contact us.
Do not hesitate, to click below!!!


Packaging & Shipping For the small filter press and delivery by LCL, we will use wooden cases; for a big model, the electrical parts will be in wooden cases, and others in seaworthy packing.

FAQ:
------1. What is Chamber Filter Press?
It is the filter press with a special Chamber filter plate. The filter chamber of the box filter press is composed of two adjacent concave filter plates.
------2. What is the difference between Chamber Filter Press and a plate and frame Filter Press?
The filter chamber of the box filter press is composed of two adjacent concave filter plates.
------3. What is Chamber Filter Press used for?
Suitable for metallurgy, coal gas, paper making, coking, pharmaceutical, food, brewing, fine chemical, and other industries. (ideal for materials with high viscosity)
------4. Are you a manufacturer or a trader? Where is your factory?
We're a professional and experienced manufacturer located in China.
------5. How to pay?
L/C or T/T is acceptable. Usually, 30% of payment is in advance, and 70% of payment is before delivery.
------6. What is the delivery time?
It depends on order quantities. Generally speaking, the delivery time will be within 1 month.
------7. How to pack the products?
We use a standard export package.
------8. How to install it after the equipment arriving your site?
We will provide detailed illustrations to you. We can also have a video chat for guidance. If it is necessary, we will send technicians to help you(This is currently difficult because of the epidemic situation).
------9. How long is the warranty for the filter press?
The validity is 12 months after installation.

---
