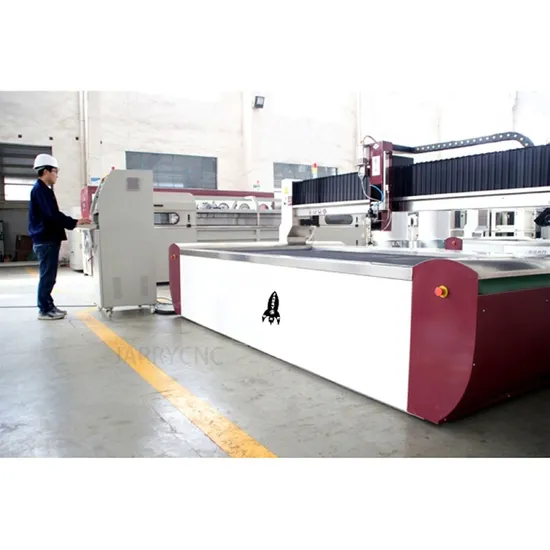

Factory Direct Sales 5 Axis Countertop CNC Bridge Saw Waterjet Prices Bridge Saw Marble and Granite Cutting Machine

Product Description

Product Parameters
Cutting table Main technical parameters

Model	L3015
Structure	Gantry Type
X axis	3100mm
Y axis	1600mm
Z-axis	200mm
Effective cutting area	3000×1500mm
Control accuracy	±0.01mm
Repeatability accuracy	0.02mm
Running Speed	15m/min
Power	380VAC, 50Hz , 3 phase 4 wire system(can be customized)

High Pressure Pump Chief technical parameter

Model	YCG-3742S
General data
Maximum output flow	3.7L/min
Maximum orifice	0.33mm
Max output pressure	420mpa
Intensifier configuration	Single
Pressure control	Manual
Shifting control	electro-hydraulic control
Pump power
Motor Power	37kw/50HP
Voltage	380V/50Hz
Physical data
Width	1300mm
Length	1800mm
Height	1500mm
Operating weight	1200kg
Options	Air cooling/Water chiller

Sludge Removal System

No.	Name	Amount
Spare parts for the machine
1	Ruby	4
2	Nozzle	1
3	Connecter of pipe(each one for larger and samller)	2
4	The shift valve elements	1
5	The air valve repair kit	1
6	Shield cap	2
7	Hp water switch kit	1
8	Hp seal(without copper cake )	1
9	Low pressure oil seal	1
10	Lp check valve repair kit	1
11	filter element(5Micron)	1
12	filter element(1Micron)	1
13	Fold filter(0.45Micron)	1
14	The Blue Lubricant	1
15	O ring and assembled ferrule	1
Special tools for machine
1	60K Intensifier Tool kit (For H-P Seal)	1
2	Wrench Girth (For H-P Cylinder)	1
3	Wrench,Spanner(For End Cap)	1
4	Wrench,Spanner(For HIGH PRESSURE SWITCH)	1

Product Description
1. CUTTING TABLE
1.1 Platform Body
1.1.1structure feature
- The machine body with the welding box structure, then make stress relief by annealing process.
- Table body and water tank which are split structure, lessen the splash of sands and water into moving parts,It is also conducive to the disassembly and transportation of the machine.
- X-axis and Y-axis transmit to rolling ball screw mandrel.
1.1.2Controlling system
We adopt Mitsubishi digit servo system(Bus communication protocol).
1.1.4 Chief parameter for drilling
- No-load speed : 1750 rpm;
- Maximum drilling capacity: diameter 8mm (aluminum alloy);
- Total stroke: 100mm
-Working stroke: 50mm
-Propelling force at 6 kg air pressure: 100 kg
-Power: 450watt
-Compressed air consumption: 650L/min
-The smallest trachea: diameter 10mm
-Tool clamping range: diameter 0~10mm
1.1.5 Transmission system
- We adopt HIWIN linear guide rail and TBI ball screw to ensure accuracy and quality.
1.1.6 Prevention system
- Over travel auto spacing function and soft spacing function
- Unique prevention design: new mazy protection and z-axis totally enclosed professional design prevent sand and water from eroding the guide screw and linear guide rail.
1.1.7 Lubrication system
- We adopt auto mass lubrication system to make oil reach every oil site on time and also make table steadier and easier.

More Pictures

Product Applications
More Products

If you want to know more product details, please feel free to contact us!

CNC bench plasma cutting machine

Bench laser cutting machine

CNC EDM wire cutting machine

CNC Vertical Machining Center

Flat Bed CNC Lathe

Slant bed CNC lathe

Universal Engine Lathe

Heavy Duty Engine Lathe

bench lathe

Company Profile
Chizhou Jarry CNC Machinery Co., Ltd was established in July 2014.
We supply CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories. We also supply other machinery for our clients all over the world. Annual sales is over ten million USD. Our machines has been exporting to Europe, Asia, Africa, South America, North AmericaAustralia and others, realiable after-selling serviceOur company has established perfect hassle-free service system in quick response, which covers pre-sales, sales and post-sales to providespecialized and standardized services in quick response for the customers and safeguard the rights and interestes of the customers.
Our company offers variety of CNC Machining Center, CNC Lathe and other machine tools which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Certifications
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, etc...
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.
