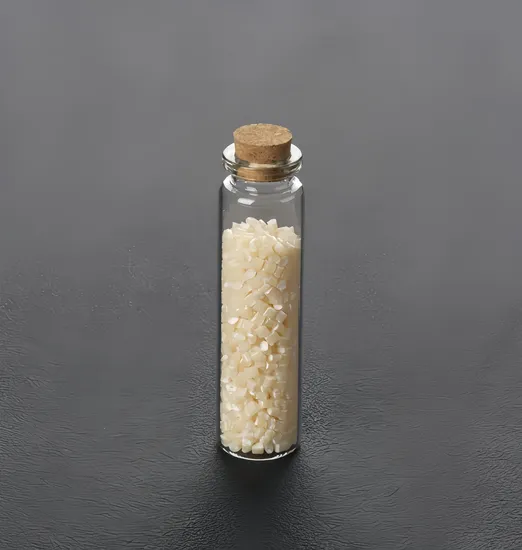

Factory Price ABS Resin Plastic Raw Material High Strength Injection Grade ABS Virgin Granules Plastic Raw Material Pellets ABS

Product Description

ABS	S100
Properties	Rated value	Test Method
Physical properties
Specific Gravity	1.04 g/cm³	ISO 1183/B
	1.05 g/cm³	ISO 1183/B
Apparent density	0.600 g/cm³	ISO 60
Die shrinkage, parallel	0.4 - 0.7 %	ASTM D955;ISO294-4
Melt index, mass
230 °C;3.8 kg	2.5 g/10min	ASTM D1238
10 kg;220 °C	10 g/10min	ISO 1133
Mechanical properties
Tensile strength, fracture	25.0 MPa	ASTM D638
Tensile strength, yield (5.1 mm/min)	42.3MPa	ASTM D638-1
Tensile strain, fracture (51 mm/min)	25%	ASTM D638-1
Tensile strain, yield (Thickness; 3.2mm)	3.30%	ISO 527-2/50
Tensile modulus
5 mm/min	2070 MPa	ASTM D638-1
Thickness; 3.2 mm	2200 MPa	ISO 527-2
Bending strength
5.1 mm/min	64.5 MPa	ASTM D790-1
Thickness; 3.2 mm	65.0 MPa	ISO 178
Bending modulus
	2210 MPa	ASTM D790
Thickness; 3.2 mm	2100 MPa	ISO 178
Impact strength of cantilever beam, notch
Thickness; 3.2 mm;Temperature; 23 °C	310 J/m	ASTM D256
Temperature; -30 °C	10.0 kJ/m2	ISO 108-1A
Temperature; 23 °C	17.0 kJ/m2	ISO 108-1A
Impact strength of simple supported beam, notch
Temperature; -30 °C	8 kJ/m²	ISO 179-2
Temperature; 23 °C	12 kJ/m2	ISO 179-2
Temperature; -30 °C	11 kJ/m2	ISO 179 1eA
Temperature; 23 °C	17 kJ/m²	ISO 179 1eA
Meter impact test, total energy
Thickness; 3.2 mm;Temperature; 23 °C;3.39 m/sec;Peak Energy	31.1 J	ASTM D3763
Thickness; 3.2 mm;Temperature; -29 °C;3.39 m/sec;Peak Energy	31.7 J	ASTM D3763
Thickness; 3.2 mm;Temperature; -29 °C;Total Energy	34.3J	ASTM D3763
Thickness; 3.2 mm;Temperature; 23 °C;-29 °C;Total Energy	45.4 J	ASTM D3763
Thermal properties
Linear coefficient of thermal expansion (CTE), parallel	94.0 µm/m-°C	ASTM D696
Heat Deflection Temperature
Thickness; 3.2 mm;Pressure; 0.46 MPa	96.1 °C	ASTM D648
Thickness; 3.2 mm;Pressure; 1.8 MPa	82.8 °C	ASTM D648
Pressure; 1.8 MPa;Annealed	101 °C	ISO 75-2/A
Vicat temperature	102 °C	ISO 306/B50
	108 °C	ASTM D1525
Flame retardant rating
Thickness; 1.5 mm	HB	UL 94
Thickness; 3 mm	HB	UL 94
Flame spread	60.0 mm/min	ISO 3795
