Product Details
Product Description
Product Description
Product Description
Classification of voltage levels:
1. Low-voltage cable: (0.6/1KV) Single Core Multi-Core Copper or aluminium conductor, Steel tape armored, galvanized steel wire armored or unarmored; PVC outer sheath. suitable for fixed laying on power transmission and distribution lines with AC 50Hz and rated voltage 3kv and below for power transmission.
2. Medium and low voltage cables: (1KV~35KV)Multi-cores, copper tape armored or copper wire screen, Galvanized steel wire armored, PVC insulated cables, polyethylene insulated cables, XLPE insulated cables, PVC or PE sheath.
3. High-voltage cables: (35KV~220KV)Copper or aluminium conductor, Metal sheath (lead or corrugated aluminium), polyethylene cables and XLPE insulated cables, HDPE or PVC outer sheath power cable.
Specification
Reference Standards:
| IEC60502-2, IEC 60228, IEC60332 -1/2/3, BS6622, BS7835, VDE0276, AS/NZS 1429.1, GB/T 12706, etc.
|
Rated Voltage:
| 6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kV
|
Core Number:
| Single Core or Three Core (1C or 3C)
|
Available Dimensions:
| 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.
|
Codes Available:
| N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY,
N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY
|
YJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32
|
Application:
| For power networks, underground, outdoors and in cable ducting. It is recommended that the installation instructions indicated by
the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will
not be affected during installation.
|

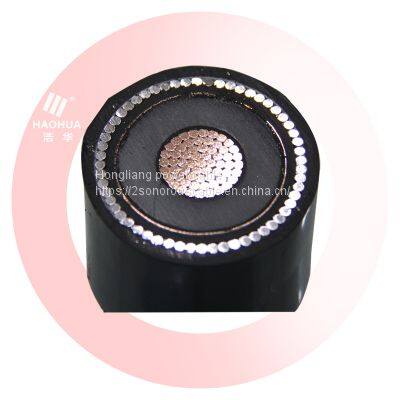

Construction:
|
|
Conductor:
| Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed.
|
Conductor Screen:
| Semi-conducting material
|
Insulation:
| XLPE (Cross-Linked Polyethylene)
|
Insulation Screen:
| Semi-conducting material
|
Metallic Screen:
| Copper tape screen or copper wire screen (CTS / CWS )
|
Filler:
| PP rope
|
Separator:
| Binding tape
|
Bedding:
| PVC (Polyvinyl Chloride)
|
Armouring:
| Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA)
|
Sheath:
| PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR
|
Colour:
| Red or Black
|
Temperature Rating:
| 0°C to 90°C
|
Minimum Bending Radius:
| Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall
diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use
of a former)
|
Detailed Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Hongliang Cable Co., Ltd.(Headquarters)
Established Year: 1988
Registered capital of RMB: 201,800,000
Total assets : 28.7millions
Factory Area: 65400m2
Manufacturing Capacity per year: 250000km
Number of Employees: 460
Hongliang Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable
Until now we already exported our products to many countries, such as Turkey, Italy, Romania, UK, USA, Salvador, Mexico, Korea, Malaysia, Vietnam, Pakistan, Nigeria, etc. Hope we can cooperate with you, too!
Certifications
We promise 100% quantified product, and we will also pay attentiont to package and delivery. Therefore, our customer can receive the perfect product. Come to start our business.
Our Partners
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 22 years experiences.
Q2. Which payment terms do you accept?
a) 30% DEPOSIT IN ADVINCE,BANLANCE AGAINST THE COPY OF B/L.
b) 100% L/C at sight.
Q3. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different cables.
Q4. What about your delivery time?
According to the order’s quantity . Usually is 15 - 30 working days.
Q5. How to packing the goods ?
Usually in wooden drum or steel wooden drums .The cable wire is usually coiled.
Contact:
Ms. echo
Mobile: 0086-15106980528
Skype: hongliangcablesales7
QQ: 469855079
E: echo(at)
>>
