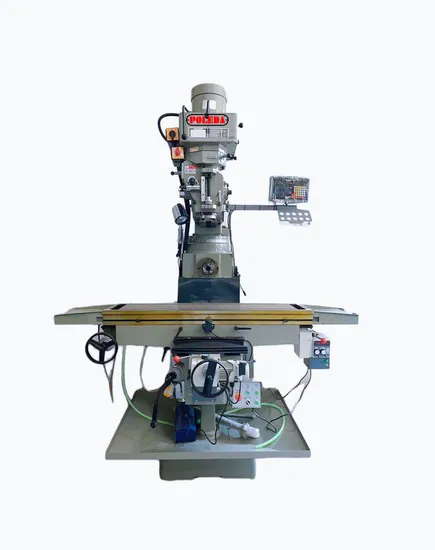

6hv Vertical and Horizontal Universal Turret Milling Machine Made in China

US$6,000.00-9,999.00 1 set (MOQ)

Basic Info.

Model NO.
6HV
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Pallet or Wooden Box
Specification
2000*1700*25000mm
Trademark
POLEDA
Origin
China
HS Code
8459590000
Production Capacity
50PCS/Month

Product Description

Product Description
Characteristics of Vertical and Horizontal Milling Machine
Variable Spindle Axis Direction: The POLEDA Universal Milling Machine ingeniously adapts to any processing scenario by allowing the spindle axis direction to change. This versatility significantly enhances processing efficiency, making it a perfect fit for diverse machining tasks.
Powerful: The POLEDA Universal Milling Machine boasts remarkable prowess thanks to its ability to vary the main shaft axis direction. It can precisely process workpiece surfaces at different angles relative to the horizontal plane, catering to an expansive array of processing needs.
Strong Adaptability: Seamlessly tackling complex tasks, the POLEDA Universal Milling Machine excels in plane, surface, and special angle processing. By adjusting the spindle axis direction, it proves to be a resourceful tool for intricate operations.
Improve Production Efficiency: Elevate your productivity with the POLEDA Universal Milling Machine. By altering the main shaft axis direction, it efficiently processes multiple surfaces post a single setup, drastically cutting down on workpiece repositioning time, thus boosting production rates.
Easy Operation: Despite its robust capabilities, the POLEDA Universal Milling Machine offers user-friendly controls. Effortlessly toggle between vertical and horizontal modes to meet various processing demands with simple operations.
Product Parameters
Structural Characteristics of Vertical and Horizontal Milling Machine
First, the Bed Structure
Featuring a high-strength double-column design, the bed of the POLEDA Universal Milling Machine ensures exceptional precision and stability. The sliding bed supports the table and spindle weight, minimizing vibration and noise for a tranquil operating environment.
Second, Workbench Structure
Central to the POLEDA Universal Milling Machine, the workbench securely holds the workpiece with its T-slot design. It allows horizontal and vertical movement, and its rotation capability aids in efficient bevel machining.
Three, the Main Shaft Structure
The spindle of the POLEDA Universal Milling Machine can be configured vertically or horizontally, featuring a chuck or tool handle for clamping. With high speed and torque, it's equipped to meet diverse machining requirements, supported by a cooling system for optimal tool and workpiece cooling.
Four, Feed System
The feed system of the POLEDA Universal Milling Machine comprises a feed shaft, servo motor, and guide rail. It enables precise tool movement in both horizontal and vertical directions, ensuring high precision and speed while maintaining stability and accuracy.
Fifth, Structural Advantages
With its compact structure, powerful capabilities, and broad application range, the POLEDA Universal Milling Machine is synonymous with high accuracy and automation. It guarantees efficient processing, minimizes manual input, and offers substantial time and cost savings.
Product name Vertical and horizontal milling machine
Product model 6HV (6H-LW)
Product technical parameters
dimension Table size 1372*330MM
Table load 350KG

journey
Left and right travel (X) 1000MM
Forward and backward travel (Y) 420MM
Up and down travel (Z) 380MM

Vertical spindle coefficient
Spindle taper NT40
Distance from spindle to table 150-530MM
Spindle speed 80-5440RPM
Spindle lift stroke 127MM
Spindle horse power 5HP
Arm reach 600MM

Transverse spindle coefficient
Horizontal shaft motor power 2.2KW
Transverse spindle speed 60-1320RPM
Transverse spindle taper NT40
Transverse spindle travel 120
Bracket center height 230

Machine profile dimensions
T-slot (width * Slot number * slot distance) 16MM*3MM*65MM
Milling head tilt Angle 45 front/back side
Machine size (L * W * H) 2200*2000*2500MM
Approximate machine weight 2500kgs
Accessories name and specification quantity

Standard parts for machine tools
1.Hand oil pump 1
2.Work light 1
3.Organ board + protective glue 1
4.Vertical NT40 tie rod, horizontal NT40 tie rod 1
5Tools and toolboxes 1


Special parts for machine tools
6.Two axis electronic ruler 1
7.X-axis automatic feed 1
8.6 "flat pliers 1
9.58 piece composite platen 1
10.NT40 cable nozzle 2
11. Operation instructions 1
12.Z axis lifting motor 1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
