Zero Tail 3.5ton/4 Ton Mini Excavator for Sale (EURO 5 /EPA 4)

Product Description

4.0 ton zero tail mini excavator YC35SR small crawler excavator
Overview:
The complete machine is small and exquisite in size and turning radius, mainly suitable for landscaping, urban construction, pipeline laying and other working conditions. It uses imported engine, featuring low noise and excellent economical efficiency.
The complete machine boasts outstanding inching performance and small impact by virtue of the perfect matching of the engine and the hydraulic components.
Its cab uses silicone oil shock absorption with a new suspension seat provided, able to give the operator a comfortable working environment. The hydraulic main valve and key hydraulic pipelines and daily maintenance points are arranged in the full-open front and rear hoods, which can further facilitate daily maintenance.
The complete machine is configured with standard high-power air-conditioning system, standby power, magazine bags and storage boxes, etc. in accordance with a humanized design. The optional rubber tracks, steel tracks, quartering hammers, quick changers and other auxiliary equipment have significantly improved its capacity for dealing with all kinds of working conditions.

Advantage:
Small-size hydraulic Excavator
High-end Configuration and Excellent Performance
Imported engine with original packing
More powerful
Low oil consumption and environmental friendly
Optimize the comprehensive performance
Technical Parameters

Working Range
Boom Length	2281mm
Arm Length	1170mm
Max Digging Reach	4791mm
Max Digging Depth	2706mm
Max Digging Height	4278mm
Max Dumping Height	2988mm
Mini Swing Radius	2130mm
Rear Swing Radius	800m
Max Ground Digging Range	4642mm
Max Vertical Digging Depth	2575mm
Performance Parameter
Machine Weight	4000kg
Engine Model	Kubota V2403
Power	31.2kw/2400rpm
Hydraulic System	40.5+3.5mpa
Swing System	10rpm
Travel Speed	0-4.5km/
Bucket Digging Force	17.8kn
Arm Digging Force	13.4kn
Grade Ability	30%
Ground Pressure	29kp
Overall Dimension
Overall Length	4650mm
Overall Width	2550mm
Overall Height	1800mm
Mini Ground Clearance	225mm
Ground Contact Length of Track	2125mm
Track Gauge	1250mm
Buck Capacity	0.12m3

Detailed photo of the Excavator

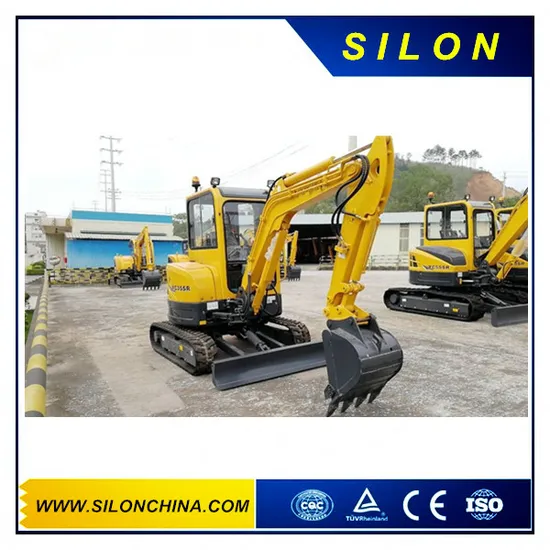

Whole Machinery Photo
Implement Photo
Our Certificaiton

---
