365nm 385nm 395nm 405nm UV-LED UV Lamp for Curing

Product Description

Product Name 365nm 385nm 395nm 405nm UV-LED UV LAMP for Curing
Product Description
·Super high power output.
·High-reliability performance.
·Energy saving and Environment friendly(Non-metal gas or harmful substances).
·Lead-Free & RoHS and Reach Compliant.
·Long life span.

Available Options

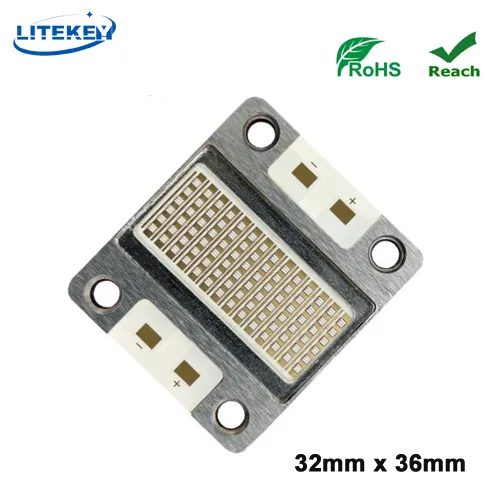

1. COB UVA LED MODULE: C3236

λp	Po	VF	IF	Pout(Φe)	2 θ 1/2
365nm	150-250W	48-54V	4-5A	13-18W/cm2	120°
385nm	200-300W	46-52V	4-6A	20-25W/cm2	120°
395nm	200-300W	46-52V	4-6A	20-25W/cm2	120°
405nm	200-300W	46-52V	4-6A	20-25W/cm2	120°

2. COB UVA LED MODULE: T3236

λp	Po	VF	IF	Pout(Φe)	2 θ 1/2
365nm	240-320W	48-54V	5-6A	13-18W/cm2	120°
385nm	240-400W	46-52V	5-8A	20-25W/cm2	120°
395nm	240-400W	46-52V	5-8A	20-25W/cm2	120°
405nm	240-400W	46-52V	5-8A	20-25W/cm2	120°

3. COB UVA LED MODULE: 4833

λp	Po	VF	IF	Pout(Φe)	2 θ 1/2
365nm	120-200W	46-50V	3-4A	12-15W/cm2	30/60°
385nm	120-240W	44-48V	3-5A	15-18W/cm2	30/60°
395nm	120-240W	44-48V	3-5A	15-18W/cm2	30/60°
405nm	120-240W	44-48V	3-5A	15-18W/cm2	30/60°

4. COB UVA LED MODULE: 5136

λp	Po	VF	IF	Pout(Φe)	2 θ 1/2
365nm	150-250W	48-54V	4-5A	12-15W/cm2	30/60°
385nm	200-300W	46-52V	4-6A	15-18W/cm2	30/60°
395nm	200-300W	46-52V	4-6A	15-18W/cm2	30/60°
405nm	200-300W	46-52V	4-6A	15-18W/cm2	30/60°

5. COB UVA LED MODULE: 5145

λp	Po	VF	IF	Pout(Φe)	2 θ 1/2
365nm	240-300W	46-50V	5-6A	12-15W/cm2	30/60°
385nm	240-380W	44-48V	5-8A	15-18W/cm2	30/60°
395nm	240-380W	44-48V	5-8A	15-18W/cm2	30/60°
405nm	240-380W	44-48V	5-8A	15-18W/cm2	30/60°

6. COB UVA LED MODULE: 4040

λp	Po	VF	IF	Pout(Φe)	2 θ 1/2
365nm	120-180W	27-30V	5-6A	13-18W/cm2	120°
385nm	120-230W	26-29V	5-8A	20-25W/cm2	120°
395nm	120-230W	26-29V	5-8A	20-25W/cm2	120°
405nm	120-230W	26-29V	5-8A	20-25W/cm2	120°

7. COB UVA LED MODULE: 4018

λp	Po	VF	IF	Pout(Φe)	2 θ 1/2
365nm	40-60W	40-45V	1-1.4A	5-7W/cm2	30/60°
385nm	40-80W	39-44V	1-2A	8-10W/cm2	30/60°
395nm	40-80W	39-44V	1-2A	8-10W/cm2	30/60°
405nm	40-80W	39-44V	1-2A	8-10W/cm2	30/60°

Application
This high power UV LED module are widely applicated for UV Curing and printing.
1. Flexographic Printing
2. Digital Inkjet
3. Coatings
4. Adhesives
5. Industrial

More details of the products,send inquiry to get the Specification.
Our extensive portfolio of LED UV curing module products come in a variety of sizes for applications such as: flexo, digital, screen, adhesives and coatings. Customization is available.
