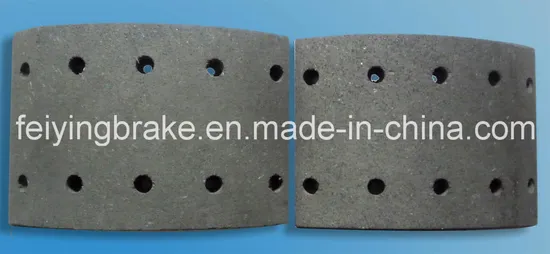

Brake Lining (WVA: 19150/19151 BFMC: DF/20/21/3) for Japanese Truck

Product Description

Product Type:	Brake Linings
Material:	Asbestos; Semi-metallic; Non-asbestos; Ceramic etc.
Model:	19150-19151
:Specification:	Outer Arc:228mm,236mm Width: 152mm ,152mm Thickness:18.5/9.4mm 18.6/13.8mm
Material span life:	Asbestos: 30000 to 40000 kilometers Non asbestos: 70000 to 80000 kilometers Ceramic: 100000 kilometers up
Packing:	4 pieces per sealed ploybag, 2 sets per inner box, 2boxes per export carton . Can be packed as per your requirement.
Sample:	Free of charge
MOQ:	2000 pcs
Delivery time:	25 -60 days as per order quantity
Delivery port:	Ningbo Port
Production capacity:	300000 pieces per month
applicatation	BOVA,DAF,LAG,OPTARE,SISU

2. Featurers:
1) Good heat dissipation
2) Do not damage the drum
3) Low noise
4) High temperature resistant
5) Environment-friendly
3. Testing Result

Inspection Item	Test Result
NormalTemperature Friction Coefficient(100-150ºC)	0.42±0.02
Hot Friction Coefficient(250ºC-300ºC)	0.42±0.01
Wear Rate(×10-7m3/Nm150ºC)	0.26-0.53
Density(g/cm3)	2.02
Impact Force(J/cm2)	0.46
Los's strength(HRM)	51
Shear strength in(MPa)	20.52
Compression strength(N/mm2)	84.49
Thermal Expansivity/%	0.89

4.Company introduce
Adhere the quality of scientific and technological innovation
Technology innovation is the first productive force of enterprise development, with the advanced technology, can make the enterprise quickly occupied the advantage position in the competition, continued to have the ability of innovation, in order to ensure an invincible position in the market competition.
With 20 experience in this area, Feiying is more clear then anyone on this point, we pay more attention on the technology research and development, continue to increase the investment of hardware equipment, also pay attention to staffs training and the introduction, the company have staffs more than 400 people, inside 15 senior engineer , 78 people have university degree, the company plans to annually increase the proportion of funds for scientific research and gradually to information and digital chemical control mode of production enterprises.
Feiying is the first one using the German brake pads Automatic technology production line , Every year will develop more than 10 high-end r R & D formula product and sell worldwhile .the company have passed the ISO / TS16949 quality system certification, for production process control, there are strict requirements, to ensure that the factory's each a product is safe and reliable, excellent qualitified products

---
