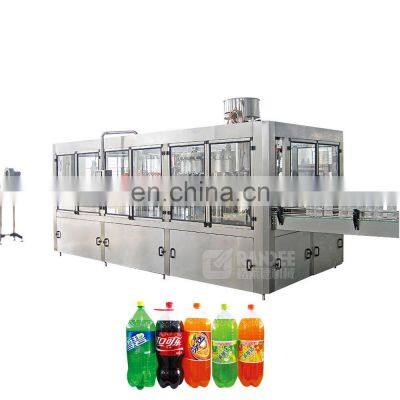

12000bph 3-in-1 carbonated soft drink filling machine / automatic plastic bottle soda water bottling plant

Product Description

Product Description
12000bph 3-in-1 carbonated soft drink filling machine / automatic plastic bottle soda water bottling plant
Product Description
Machine description and features:
This series equipment is used for production of PET bottle carbonated drink. This machine intergrated washing, filling, capping in one machine with complete automation, and suitable for all kinds of bottle shapes. Il adopts clip bottle neck technology, and is more faster for adjusting the height of conveyor chain. The filling method adopts new model constant pressure filling technology, which makes filling speed is more faster and stable. The main machine adopts advanced PLC control. The key electrical elements are from famous international brand. The whole machine has scientific and reasonable design, high production capacity, low failure.
Automatic plastic bottle soda water bottling plant

Automatic carbonated drink filling machine production line packaging specifications						Material: SS304/316
Bottle material	Shape		Filling volume	Filling level(mm)		Neck type
PET/Glass bottle	Square/round/flat bottle		100-2250ml	According request±1mm		As required
Adjustable specifications	Bottle size: bottle diameter≤110mm, bottle height≤340mm
	If using square bottles, then bottle separating system will be added
Filling temperature	2℃-40℃ level control: float ball and pneumatic butterfly valve.
Bottle labeling type		Packing system Min, Spec.				Palletizing system
Manual/ automatic Hot melt roll-fed PVC shrink label Full label/half label		Film shrink packing Robert packing Carton packing		2*3 2*4 3*4 3*5 4*4 4*5 4*6 6-30bags/min		Low position Gantry palletizer Robot palletizer
User Ambient Conditions		Temperature: 2-40℃, Humidity: no dew
Bottle feed-in		Conveyor with screw for glass bottle			Adopt air-conveyor for PET bottle

Grandee machinery can do more for you
Detailed Images

Washing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor. The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again
	Filling part:Contact-free filling, with all parts in contact with a beverage made from stainless steel AISI 304 / 316L. Automatic dummy bottles available, with insertion and removal available for automated CIP. Optional reduced filler enclosure strengthens food safety and reduces the usage of chemical agents and water during external cleaning.
Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
	RO System Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
Blowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.
	Full automatic sleeve labeling machine Capacity: 100-350bottles/min can be choosed Label material: PVC PET OPS,etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
Linear PE film shrink packing machine Film material: PE Shrink membrane thickness: 70~100um Capacity: 8-35 packages/ min can be chosen Conveyor belt max width: 600mm Height : 1000~1100mm

Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

---
