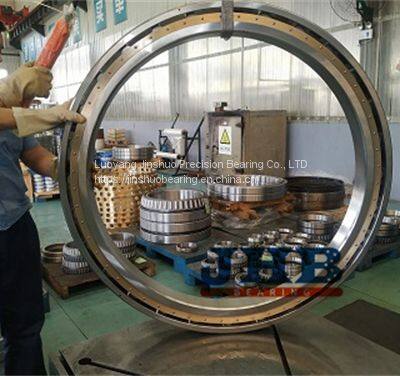

Precision bearing Z-548410.ZL for Tubular stranding machine
The cylindrical roller bearings Z-548410.ZL have high rigidity, high radial load carrying capacity and, due to the cage, are suitable for higher speeds than full complement designs. Bearings with the suffix E havea higher capacity roller set and are thus designed for very high load carrying capacity.High precision bearings Z548410ZL must guide machine parts with high precision and support forces at up to very high speeds.
Factory Bearing items: Z-548410.ZL
Bearing old type:548410
Bearing boundary size:
Standard size,offer drawing to confirm
Bearing outer diameter:
Standard size,offer drawing to confirm
Bearing inner diameter:
Standard size,offer drawing to confirm
Bearing height :
Standard size,offer drawing to confirm
Ring material: steel GCr15SiMn
Roller material：steel GCr15
Cage material:Brass material cage
Internal structure: Single row cylindrical roller bearing
Row number: one row
Rolling: Roller
Basic dynamic load rating, Radial Cr:2240KN
Basic static load rating, Radial Cor：3600KN
Limited speed:2400RPM
Clearance:C3 C0 normal use
Package:strong wooden case for export
The roller bearing Z-548410.ZL mainly used in Tubular Strander machine,such as steel/cooper rope strandering machine.Temperature differences cause great axial length variations of the rotor. They are easily compensatedfor by the cylindrical roller bearings Z548410ZL.we had manufactured the tubular stranding bearing at least 15 years, So if you have any technology issue, Please contact us.

---
