Product Description
Product Description

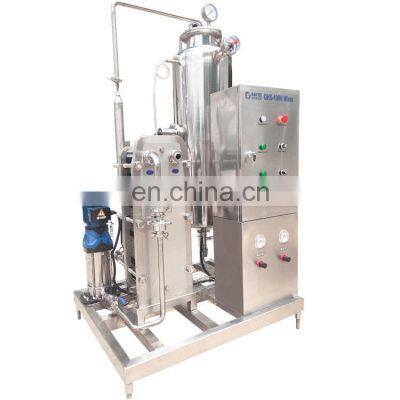

QHS-1500 carbonated soft drink mixer for beverage production lineProduct DescriptionMachine description:QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of bottle, such as soda water, fruit juice, cola and other soft and hard drinks. Main features:1.Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC.Once a error occurs,the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically.2.Easy operation and regulation:The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging and parts.3.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.4.Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating,So its carbon content is especially high. 1000L-1500L/Hr Carbonation mixer with heat exchanger Main technical parameter:ModelQHS-1500QHS-3000QHS-4000QHS-5000QHS-6000Production capacity1000-20002500-30003500-40004500-50005500-6000Adjustable proportion of of syrup and water1:3-1:6CO2 content 1.5-2.5>2.5>2.5>3.5>3.5Cooling water entry temperature(℃)0-5Working pressure of carbonized and syrup tank(Mpa)0.05-0.15Working pressure of storage tank(Mpa)0.2-0.5Power(KW)1.13.74.55.66.2Dimension(mm)1100*900*20001720*1140*21001860*1300*21002020*1500*22002020*1500*2200Weight(KG)4001100130016001800Related ProductsCarbonated drink washing filling capping machine Capacity: 2000BPH to 20000BPH for 500ml bottle Filling temperature: 3℃ to 8℃Bottle range: 200ml-2250ml Bottle dimater: ≤340mmBottle height: ≤110mm Bottle material: PET bottle Bottle shape: round / flat / square bottle Carbonation mixer and air cooled type water chiller Co2 content: ≥3.5Carbonation mixer and Water chiller Process: Water, syrup, CO2 mixing systemCarbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature)Soda Water Mixing SystemProcess: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tankThe output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc.Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming.Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, double layer with warming jacket, motor with blending system Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. double layer with warming jacketBlowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Full automatic sleeve labeling machineCapacity: 100-350bottles/min can be choosedLabel material: PVC PET OPS,etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm Company informationNew Certifications Workshop detail Our team Project cases FAQ
>>
