High Speed Hard Candy Machine

Product Description

Main Description

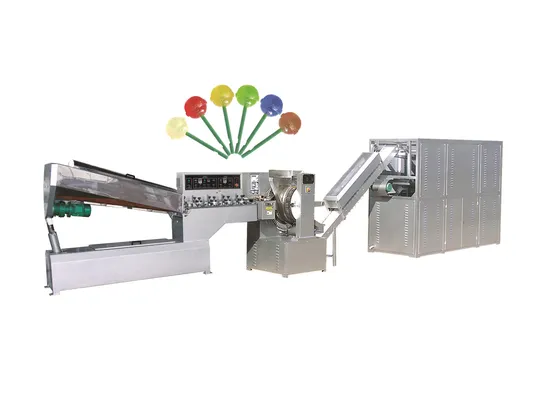

This hard candy line which consists of sugar cooking system, cooling table, candy kneader, jam pump, batchroller, ropesizer, die-forming machine, dust-absorber, cooling conveyor and packing machine is mainly used to produce filled or without filled hard candy with different shapes and colors.
Main Principle
Cooking sugar --Batchroller --Ropesizer --High speed molding --die forming --Cooling conveyor --Packing
Main Parameter

Main items	Production capacity	Overall power	Overall dimension
Jam pump	30-60L/h	1.55 kw	620×620×1100 mm
Batchroller	300-400kg/h	6.95 kw	2500×750×1650 mm
Ropesizer	300-400kg/h	3.42 kw	1500×680×1350 mm
Forming machine	<500kg/h	3.38 kw	2250×1000×1600 mm
Crumb collector	Flow velocity 1800-3700 m³/h	2.2 kw	1200×1160×2200 mm
Cooling tunnel	Cooling time 5-7.5min	39 kw	9000×1950×1980 mm
PS: All Specifications can be Customized.

Main Feature
1. More options in production of filled or without filled candies, max forming speed reaches 2000pcs/min.
2. Reasonable design, good looking, easy operation, convenient maintenance & easy cleaning.
3. All Food Grade 304 SS makes materials cater HACCP CE FDA GMC SGS International Standards.
4. Imported electric appliances, such as Omron, Siemens, etc. ensure the stable working performance without defaults.

---
