US$0.35
2,000-399,999 Meters
US$0.32
400,000-4,999,999 Meters
US$0.25
5,000,000+ Meters
Basic Info.
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Certification
RoHS, CE, ISO9001
Applications
Aerial/Direct-Burial/Duct Installation
Certifications
ISO9001, ISO14001, ISO45001
Jacket Type
Single Jacket
Armor
Corrugated Steel Tape
Strength Member
Steel Wire
Transport Package
Fumigated Wooden Drum/ Plywood Drum
Specification
SPAN 80M/100M/120M etc.
Production Capacity
35000km/Year
Packaging & Delivery
Package Size
80.00cm * 80.00cm * 75.00cm
Package Gross Weight
110.000kg
Product Description

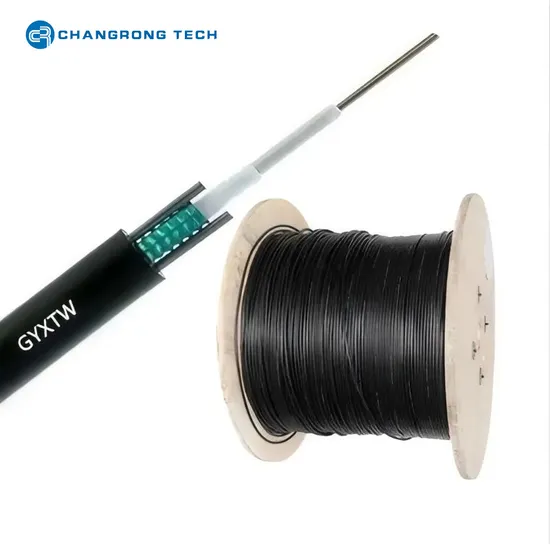

GYXTW Central Uni-tube CST Armored 2-24core Aerial/Duct Fiber Optic Cable
Application:
Direct-burial / Duct / Non Self-supporting Aerial Installation
Span Customized: 80/100/120/200m etc.
Product Parameters
| Fiber Counts | 4 | 6 | 8 | 12 | 24 |
| Fiber Model | G.652D |
| Strength Member | Material | Steel Wire |
| Diameter(±0.05)mm | 0.8 |
Loose Tube | Material | PBT |
| Diameter(±0.06)mm | 1.8 | 2.0 | 2.8 |
| Thickness(±0.03)mm | 0.28 | 0.3 | 0.4 |
| Armor | Material | Corrugated Steel Tape |
| Thickness(+0.03)mm | 0.20 |
| Outer Sheath | Material | MDPE |
| Color | Black |
| Cable Diameter (±0.2)mm | 7.7 | 7.9 | 8.5 |
| Cable Weight (±5.0)kg/km | 57 | 59 | 68 |
| Tensile Strength (Long/ Short) | 600N/ 1500N |
| Crush Resistance (N/100mm) (Long/ Short) | 300N/ 1000N |
| Min. Bending Radius | Static | 10.0×Cable-φ |
| Dynamic | 20.0×Cable-φ |
Temperature range(ºC) | Installation | -20~+60 |
| Transport&Storage | -40~+70 |
| Operation | -40~+70 |
The fibers are positioned in PBT loose tube filled with water-proof filling compound. The water blocking tape is wrapped around the central tube. Then a corrugated steel tape (CST) armored longitudinally. Two parallel steel wires are embeded at two sides. Finally the cable completed with a PE sheath.
Features:
• Good mechanical and thermal performance
• Hydrolysis resistant loose tube
• Tube filling gel ensures critical protection of fiber
• Two parallel steel wires ensure tensile strength
• Small diameter, light weight and convinient installation
• Corrugated steel tape(CST) enhancing moisture-proof
• Long delivery length Cable Structure Design Type 1: Water-blocking Tape as waterproof measure
Type 2: Cable Jelly as waterproof measure
Certifications ISO9001, ISO14001, ISO45001 Certified Factory.
Own Lab certified by CNAS.
Our Advantages
50 Sets of Optical Cable Testing Equipment:
Packing & Shipping Drum Packing:
Shipping: Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, located in Tianchang City, Anhui Province, very near to Nanjing and Yangzhou cities; with total area 230,000 Sqm, is one of the high-tech enterprises specialized in R&D, production and sales of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines, an annual production capacity of 15 million Fiber Kilometers, own lab with advanced equipment and CNAS certification, CROFC is devoted to achieving the best solutions for customers. Catalogue
Optical Fiber SM: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYFTC8S, GYFXTC8Y
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH
Welcome to contact for more information!
