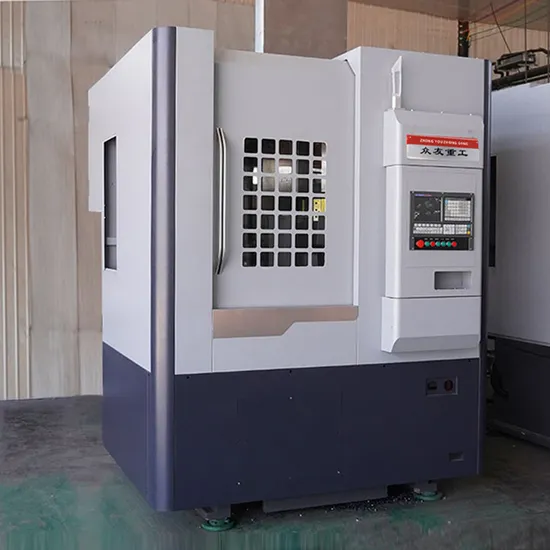

Vertical Lathe Machine From China Type CNC Automatic Lathe

Product Description

vertical lathe machine from china type cnc automatic lathe
Product Description
The CNC vertical lathes are based on high rigidity structure combined with precision linear rails, equipped with hydraulic positioning turret and powerful spindle with high torque output, so that this series of machine tools can provide you with the most powerful cutting performance with superior quality.
The machine covers a small space, can be designed to meet different space request.The 2 axis of wheel lathe adopt the most stable gantry structure.The structural body is made of cast iron and resin sand casting. The Z axis is driven by four linear guides, double ball screws and double servo motor. Meanwhile, the counterweight is used to balance the z-axis with a large load bearing capacity,which effectively ensures the influence of the two axes due to different stress structures. The cutting feed in the process of wheel repair can keep sensitive control response and achieve the perfect alloy wheel repair effect.

Main Features:
1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
Main Features: 4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque,
heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing
6. Automatic centralized lubrication with full sufficiency and reliability.

Product Parameters

Items	Specifications	Unit	VT45	VT65	VT75	VTS525	VTS527
processing capability	maximum rotating diameter	mm	∮560	∮650	∮750	∮750	∮750
	Maximum cutting diameter	mm	∮450	∮600	∮700	∮550	∮700
spindle	Spindle face form		Straight Port	Straight Port	Straight Port	Straight Port	Straight Port
	speed of spindle	rpm	3000	100-1000	50-1500	50-1000	500-1000
	Chuck diameter	mm	500	500	630	500	630
Turret	Tooling capacity	pc	Horizontal eight stations	Horizontal eight stations	Horizontal eight stations	Row of knives/horizontal eight stations	Row of knives/horizontal eight stations
	Outer diameter of the handle	mm	32	32	32	32	32
	Inner diameter of the handle	mm	∮40	∮40		∮50	∮50
	Center tool rod	mm			160
Stroke	stroke of X axis	mm	400	450	700	280	450
	stroke of Z axis	mm	500	600	700	500	700
Hydraulic unit	Oil pressure tank capacity	L	50	50	50	50	50
	Oil hydraulic motor	kw	1.5	1.5	1.5	1.5	1.5
Cutting water unit	Water tank capacity	L	180	200	200	200	200
	Cutting water motor	w	250	450	450	450	450
	Power of flush motor	kw	250	450	450	450	450
Motor	X axis servo motor	NM	12	18	18	15	15
	Z axis servo motor	NM	22	30	18	15	15
	Spindle servo motor	kw	18.5	18.5	22	18.5	22
Accurate	Repeatable positioning accuracy	mm	±0.005	±0.005	±0.005	±0.005	±0.005
	positioning accuracy	mm	±0.008	±0.008	±0.008	±0.008	±0.008
Size+weight	L*W*H	mm	1700X1880X2500	2000X1950X3000	2450X1900X3200	3000X2400X2700	3200X2400X3200
	Weight (including accessories)	kg	5500	8000	9500	7000	9000

Application

The machine especially suitable for processing wheel hub, brake hub and other types of short shaft, pump body, disc parts.Suitable for multi-variety, small and medium-sized batch parts processing characteristics, is the automobile, agricultural machinery, engineering machinery, electrical machinery and other industries parts processing preferred equipment.
Packaging & Shipping


Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.

Our Services


Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile

Certifications
Zhongyou has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
