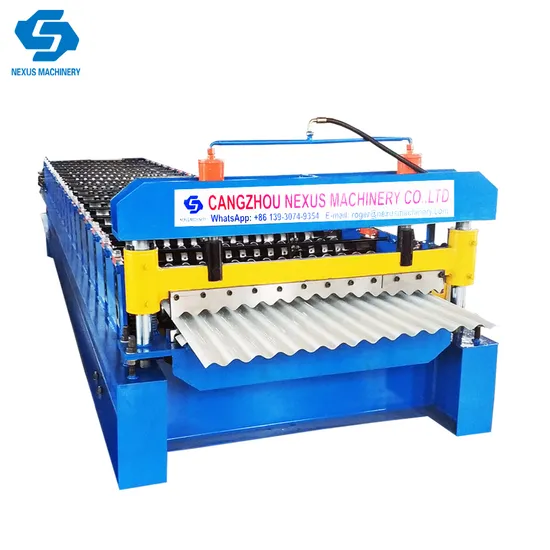

Metal Corrugated Roof Sheet Roll Forming Machine Steel Roofing Panel Making Machinery

Product Description

Product Description
Metal Corrugated Roof Sheet Roll Forming Machine Steel Roofing Panel Making Machinery is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suits thickness range is from 0.20mm to 0.60mm PPGI,GI sheet. We adopt 16mm thick wall board to make machine frame strong and beauty. Usually it can run with the speed to 10-15m/min, PLC with touch screen operation make the machine simple and easy for usage.
Detailed Photos
Product Parameters

Configurations	manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station, PLC control system
Material	Raw material	PPGI, GI Sheet
	Coil width	1000mm/1200mm/1220mm/1250mm
	Thickness	0.20mm-0.60mm
Manual Decoiler	Inner Diameter:450-550mm	Expand by manual
	Outer Diameter: max 1500mm
	Max Coil width:1000mm
	Capacity: 5T
Main Machine	Number of Forming steps	15 steps -18 steps
	Shaft diameter	70mm solid shaft
	Design type	Middle plate welded
	Machine frame	350# H steel welded
	roller material	45# steel, surface hard chromium plating.
	shaft material	45# steel
	Work speed	10-15m/min
	Transport	By chains
	Power of main machine	5.5 kw SHANGHAI LICHAO
	Type of cutting	Hydraulic guide pin cutting
	Cutting tolerance	±1mm
	Cutter	Gcr12MOV
	Cutter quantity	1 set
	Working pressure	20MPA
Hydraulic system	Hydraulic oil	46#
	Hydraulic power	3kw
	Cutting length	As required
	No distorting or wasting. High level safety factor.
Control Device	PLC control	PLC DELTA, TAIWAN
	PLC language	English and Chinese
	Transducer	7.5KW Delta, TAIWAN
	Touch screen	7 Inch large screen, DELTA, TAIWAN
	Function	Automatic length and quantity measurement
	coder	Omron, JAPAN
	Other electrical device	International brand
	Weight	About 5.5 tons
	Dimension	About 6500*1500*1700mm L*W*H
	Main body color	Yellow and blue
	Voltage	380v/50hz/3ph

Certifications
Packaging & Shipping
Company Profile
After Sales Service
1. Engineer will give free training lessons to labors in buyer's factory.
2. The Buyer need buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by incorrect operations, we will provide the buyer spare parts at cost price.
4. We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer, we have 3 workshop for different kind of roll forming machine. The first one is for making color steel roll forming machine, second one is for making metal purlin roll forming machine, last one is for raw material processing.
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional. We can send engineer to buyer's factory to teach and install.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians. What's more, we can provide updated spare parts to customer if they have requirement.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001.Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: Absolutely not. Most machines are customized according to buyer's specific demand.
7) Q: How can I contact you?
A: You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you.
8) Q: How to visit your factory?
A: 1) Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi, then we can pick up you.

---
