US$33.88-130.44
|
50 Pieces
(MOQ)
|
Basic Info.
Number of Stator
Single-Phase
Species
Yl Series Single-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Starting Mode
Direct on-line Starting
Voltage
110V/220V, 110V, 220V, 240V
Frame
Cast Iron or Aluminum
Mounting Type
B3, B5, B35, B14, B34
Transport Package
Wooden Case Packaging
Production Capacity
300000/Year
Product Description

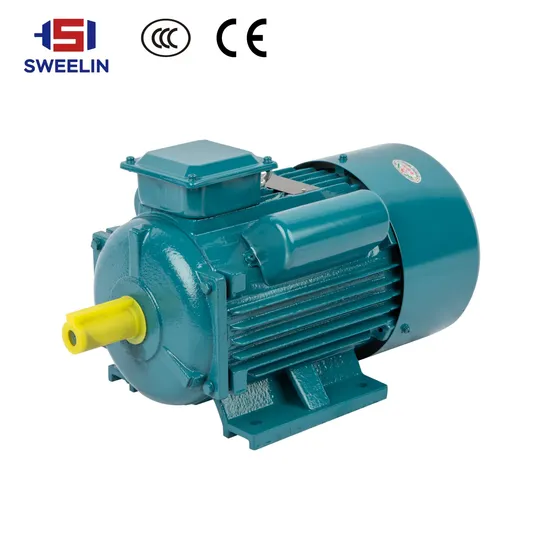

Motor model | YCL series single-phase asynchronous motor |
texture of material | Iron shell |
Installation method | horizontal |
power | 1HP-8HP |
Applicable scope | YCL iron shell horizontal double capacitor can be applied to vacuum pump mixer meat grinder and other mechanical equipment |
Model parameters
TYPE | POWER(KW) | Rated Current(A) | SPEED(r/min) | η(%) | Power Factor cos | Tst/Tn | LST (A) |
YCL80-2 | 0.37 | 3.7 | 2800 | 62 | 0.73 | 2.8 | 6.5 |
YCL80-2 | 0.55 | 5.3 | 2800 | 65 | 0.73 | 2.8 | 6.5 |
YCL8012 | 0.75 | 6.7 | 2800 | 68 | 0.75 | 2.8 | 6.5 |
YCL90S-2 | 1.1 | 9.1 | 2800 | 71 | 0.77 | 2.4 | 7 |
YCL90L-2 | 1.5 | 12.1 | 2800 | 72 | 0.78 | 2.4 | 7 |
YCL100L-2 | 2.2 | 17.1 | 2800 | 74 | 0.79 | 2.1 | 7 |
YCL112M1-2 | 3 | 21.4 | 2800 | 76 | 0.84 | 2.2 | 7 |
YCL112M2-2 | 3.7 | 24.8 | 2800 | 79 | 0.86 | 2.2 | 7 |
YCL80-4 | 0.25 | 3.4 | 1400 | 56 | 0.6 | 2.8 | 6 |
YCL80-4 | 0.37 | 4.5 | 1400 | 60 | 0.92 | 2.8 | 6 |
YCL8014 | 0.55 | 6 | 1400 | 64 | 0.65 | 2.8 | 6 |
YCL90S-4 | 0.75 | 7.7 | 1400 | 67 | 0.66 | 2.4 | 6.5 |
YCL90L-4 | 1.1 | 10.5 | 1400 | 70 | 0.68 | 2.4 | 6.5 |
YCL100L-4 | 1.5 | 13.5 | 1400 | 72 | 0.7 | 2.4 | 6.5 |
YCL112M-4 | 2.2 | 19.3 | 1400 | 72 | 0.72 | 2.2 | 6.5 |
YCL132S-4 | 3 | 25.2 | 1400 | 74 | 0.73 | 2.1 | 6.5 |
YCL132S-4 | 3.7 | 30 | 1400 | 75 | 0.74 | 2.1 | 6.5 |
YCL132M-4 | 5.5 | 32.5 | 1400 | 81 | 0.95 | 2.1 | 6.5 |
Who are we? Taizhou Su Lin Mechanical & Electrical Co., Ltd. is located in Wufeng Industrial Park, Daxi Town, Wenling, Zhejiang province. Adjacent to Yongtaiwen high-speed G15, China National Highway 104, 18 km from the Taizhou Luqiao Airport, 2 km from the railway station, the traffic is very convenient. Is a set design, production, sales, service integration of the new enterprise. Has many years of production YY series fan, JY, Ye2, YC, YL, YCL, YS Experience, has a perfect motor automatic computer testing line, Advanced Manufacturing, assembly line, specializing in the production of Dinyi brand series motor products. Products through the national compulsory product CCC certification, Export European Union CE safety certification The company produces a complete range of motors, a variety of varieties, advanced design, well-chosen materials, advanced technology and unique, with excellent performance and the use of safe, reliable, durable and other advantages, products sell well throughout the country and exported to all world countries , customers at home and abroad to the praise. The company regards human resources as the basis of development of the enterprise, attention to customer needs, customer service, to build the industry brand. With our strong human capital and continuous innovation, we can create a comfortable and quiet environment for maintaining the eternal health of human beings. The company adheres to the "quality first, customer first" principle to provide customers with quality service, welcome new and old customers to visit, guidance and business negotiations. Product Description YC single-phase Electric Motor are made of high-quality materials and conform to IEC standard. Which has good performance with low noise and little vibration. It is safe and reliable in operation, and can be maintained very conveniently.
1.YC Series Aluminum Housing single Phase Induction Motor adopts the latest design and high quality material and are conform to the IEC standard in function, appearance, output and other requirements.
2.The efficiency of YC motor meets IEC standard in E. U. . YC motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.
3.YC motor is died cast into mounding shape by aluminum-alloy. The base foot can be removable. Various mounting types are available for YC motor.
4.YC motor is suitable for common working environment and machinery without special requirement, like air-compressor, pump, fan, medical apparatus and instruments, small machines etc.
Installation dimensions
Factory real shots
>>
