High Effient Tiger Head Shear Machine with High Production for Recycling

Product Description

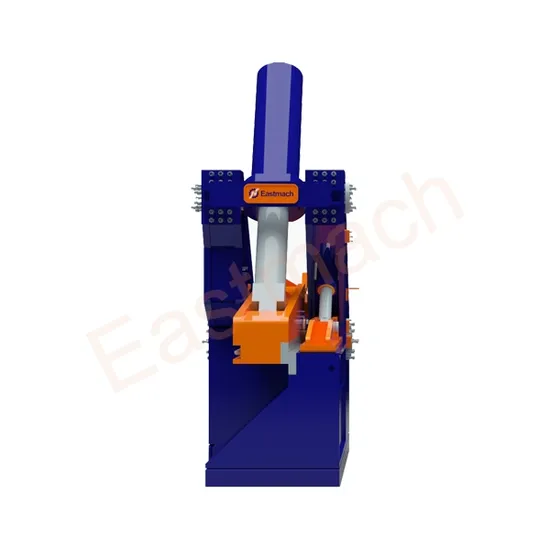

Product Feature Hydraulic Gantry Shearing Machine
Hydraulic Gantry Shearing Machine is suitable for pre compression and shear of various low-carbon scrap steel, scrapped automotive casings, metal structural components, etc.
The product has the following characteristics:
1. Install high-strength wear-resistant alloy steel plates in areas prone to wear and tear, effectively extending the service life of the equipment;
2. The shear slider guide rail and shear oil cylinder adopt automatic lubrication to prevent dry friction damage;
3. The intelligent control system provides optimal shear control and reduces the idle stroke of the shear cylinder;
4. The maximum cutting angle can reach 12 degrees, with strong cutting ability.
Own brand as manufacturing also accepts OEM/ODM
Product Parameters

Product model	Y81-160	Y81-200	Y81-250	Y81-315	Y81-400	Y81-500	Y81-630	Y81-800	Y81-1000	Y81-1500	Y81-2000
Oil cylinder pressure(t)	160	200	250	315	400	500	630	800	1000	1500	2000
Feedbox size(mm)	1600×1000×700	1600×1200×700	2000×1400×900	2500×2000×1200	3000×2000×1300	3000×2000×1300	4000×3000×1300	4000×3000×1400	4000×3000×1400	4000×3000×1500	4000×3000×1500
Bale size(W×H/mm)	400×400	400×400	500×500	500×500/600×600	600×600/700×700	700×700	700×700/800×800	700×700/800×800	700×700/800×800	700×700/800×800	700×700/800×800
Motor power(KW)	37	2×22	2×22	2×45	3×45	3×45	3×45	4×45	5×45	8×45	10×45

Product Description FAQ
1.Which country have been exported?
Russia, USA, Canada, Japan, Korea, Malaysia, Hong Kong, Taiwan, India, Indonesia, Australia, New Zealand, Israel, South Africa etc.
2.How about the Shipment?
Shipment can be made by sea, air or land. Sea loading ports include Qingdao, Yantai and Shanghai etc. Sales manager will select an
optimal shipping method for you. For more information, please contact us.
3. How about the package?
Our attachments are packaged by standard export wooden cases free from fumigation.
4. How about delivery time?
Usually 15 days subject to order quantity. Due to the surge in orders, please check with customer service staff for lead time.

---
