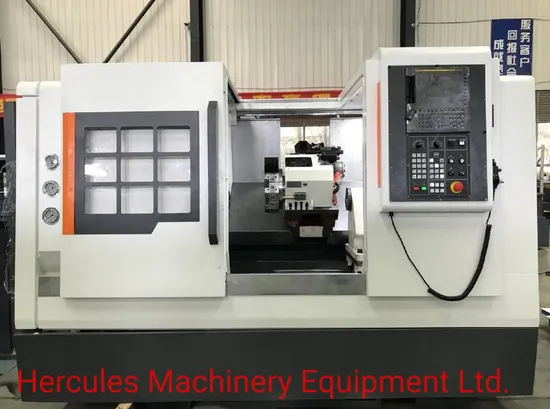

CK36/T3650 CNC Slant Bed Lathe Torno inclinado Turning Center

Product Description

MULTI-FUNCTION CNC SLANT BED LATHE T3650
Intro
T3650-series CNC slant bed lathe is designed and produced in accordance with the market needs and manufacturing demands, and combined with years of experience in research and development on horizontal lathes. T3650-series gets fully upgraded by the state-of-the-art ergonomic design, the upgraded machine structure and the reliable assembly process. The upgraded model provides sufficient rigidity to ensure the stability and precision under heavy cutting, and finish most of turning processes with high efficiency, mass production and high precision. With such advantages on metal processing, T3650-series is becoming sound and recognized by customers on the industry and machine tool markets.
Machine Standard Configurations Sleeve-type A2-6 φ65mm spindle, 11kW spindle motor with speed 4500rpm. High quality linear guide rail and ball screw. 6"/8" hydraulic chuck. Other size chuck available as requested. Hydraulic tailstock. 8-pos hydraulic tool turret (25x25). Chain-type chip remover. 30 degree slant bed, full covered sheet metal protective shield. Standard exporting package. 380V/50Hz. GSK988T/Fanuc 0i TF(5)/Siemens 808D available.
Machine Structure
Technical Specification

Specification	Unit	Parameter
Swing Over Bed	mm	500
Max. Turning Length	mm	500
Max. Turning Diameter	mm	360
Standard Turning Diameter	mm	240
Swing Over Cross Slide	mm	320
Spindle Type		A2-6
Spindle Bore	mm	65
Spindle Speed	mm	50~4500
Spindle Output Torque	Nm	177
Spindle Output Power	kW	7.5/11
Chuck Size (3 Jaw)	Inch	6"/8"
X/Z Axis Rapid Speed	m/min	30
X/Z Travel Distance	mm	200 (X Axis)/550 (Z Axis)
Quill Travel Distance	mm	350
Quill Bore Taper		MT5#
Tool Turret		Hydraulic 8-positions tool turret
Tool Section	mm	25x25
Boring Tool Diameter	mm	40/32/25/20
Coolant Pump Power	W	150
Coolant Pump Flow Rate	L/min	50
Positioning Precision	mm	0.008
Repeating Precision	mm	0.004
Machining Surface Roughness		Ra1.25μm
Max. Working Load	kg	200 (Disk)/500 (Shaft)
Net Weight/Gross Weight	kg	3700/4200
Machine Dimensions	mm	2700x1900x2000
Packing Dimensions	mm	3300*2300*2600
Standard Accessories	1	6"/8" Hydraulic 3-jaw chuck
	2	Hydraulic tailstock
	3	8-pos Hydraulic tool turret
	4	Chain-type chip remover
	5	Full covered sheet metal protective shield
	6	Standard exporting package
	7	GSK988T/Fanuc 0i TF(5)/Siemens 808D
Optional Configurations	1	300W Air-conditioner cooling
	2	Special voltage system (not 380V)
	3	Schneider-Electric components

---
