US$338.00-549.00
|
1 Piece
(MOQ)
|
Basic Info.
Type

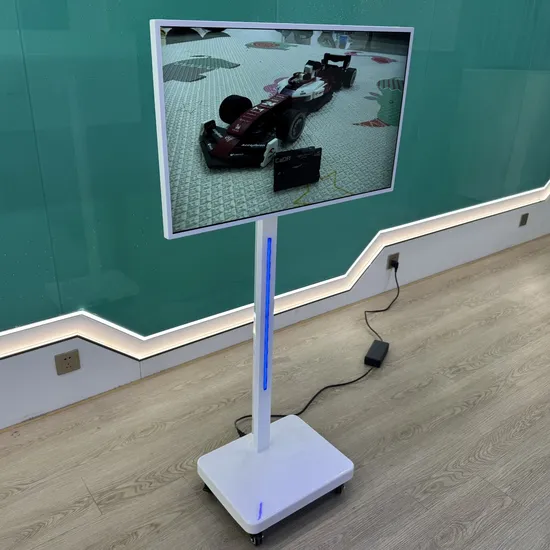

Touch Screen Panel AD Player
Touch Screen Type
Resistive
Remote Control
With Remote Control
Resolution
1920 X1080 (FHD)
Display Area(mm)
698.4(H) X 392.85 (V)
Brightness (CD/M²)
500 Nits
Memory
Standard 2g, Optional 4G
Appearance Color
Black, Chinese Red, White, Rose Gold, Ice Blue
Operating Temperature
0-50
Storage Temperature
-20 to 60
Operating Humidity
10% to 80%
Storage Humidity
10% to 80%
Transport Package
Export Carton
Production Capacity
50000 Sets/Year
Packaging & Delivery
Package Size
600.00cm * 1200.00cm * 300.00cm
Package Gross Weight
30.000kg
Product Description
Product Description
Product Parameters
| Category | No. | Name | Specifications |
| Screen | 1 | Display | TFT-LCD, BOE, HV320FHB-F40 |
| 2 | Resolution | 1920x1080 (FHD) |
| 3 | Display Area(mm) | 698.4(H) × 392.85 (V) |
| 4 | Aspect Ratio | 9:16 |
| 5 | Brightness (cd/m²) | 500 nits |
| 6 | Color | 16.7M |
| 7 | Viewing Angle | 178° |
| 8 | Contrast | 4000:1 |
| 9 | Touchable | Optional |
| Motherboard | 1 | CPU | Quad-core RK3566, up to 1.8GHz main frequency |
| 2 | GPU | Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 1.2, Vulkan 1.1 |
| 3 | Memory | Standard 2G, optional 4G |
| 4 | Built-in Storage Capacity | EMMC standard 16G, optional 32G, TF Card expansion |
| 5 | USB | 1 USB-3.0 HOST, 1 USB2.0 OTG |
| 6 | Network | Support RJ45 R/A 100M Ethernet, support 2.4GHz Wi-Fi (support optional 5GHz), support Wi-Fi 802.11b/g/n protocol, support Bluetooth 4.2(optional) |
| 7 | System | Android 11 |
| 8 | Media Formats | Supports video (WMV, AVI, FLV, rm, rmvb, mpeg, ts, mp4) etc.
Audio (MP3, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP) etc.
Picture (JPG, BMP, PNG, GIF) etc. |
Battery
(optional) | 1 | Battery Technology | Ternary lithium battery |
| 2 | Charging Time | 4 hours |
| 3 | Working Hours | 7 hours
(When the temperature is below 0 degrees, the operating time decreases by 10% for every 5 degrees drop) |
| 4 | Battery Capacity | 10Ah |
| 5 | Input Voltage | 25.2V |
| 6 | Battery Consumption | 252WH |
| Appearance | 1 | Appearance Color | black, Chinese red, white, rose gold, ice blue |
| 2 | Appearance Size (H x W x D mm) | 1473*424*319mm |
| 3 | Packing Size (H x W x D mm) | 501*1110*230mm |
| 4 | Net Weight(Kg) | 16.1KG (with battery 20.2KG) |
| 5 | Gross Weight(Kg) | 20.8KG (with battery 24.9KG) |
| Condition | 1 | Operating Temperature | 0 °C to 50 °C |
| 2 | Storage Temperature | -20 °C to 60 °C (battery recommended long-term storage
termperature -20 °C to 25 °C) |
| 3 | Operating Humidity | 10% to 80% |
| 4 | Storage Humidity | 10% to 80% |
| Accessories | 1 | GPS | Optional |
| 2 | Packaging Accessories | Remote control, power cord, screws |
| Maintenance | 1 | Warranty | 1 year |
| 2 | Battery Warranty | 1 year |
| 3 | Technical Support | 10 years |
Company Profile
Packaging & Shipping
FAQ Q1. What is the Trade Term?
A1: EXW, FOB, CIF etc.
Q2. How long is the guarantee (period)?
A2: One year quality warranty.
Q3. How many colors for selection?
A3: The most popular colors are white and black. But the color can be customized.
Q4. How long is the delivery time?
A4: Mostly 7-15 days after receiving deposit or full payment.
Q5.What is the Payment term?
A5: T/T or L/C at sight. 30% Deposit for starting the production, balance before the shipment.
Q6. Will you guide us for installation and usage?
A6: Sure. We will teach you how to install and use.
Q7. During shipping, if there is a damage to products, how do you get replacement?
A7: During shipping, our shipping agency will try to ensure the safety of the goods and if needed, we can buy shipping insurance. If there is a damage to products, they would be responsible for the damage.
Q8. If there are any missing parts in our shipment, how long it takes for you to send?
A8: If there is some small missing components, we will DHL to you ASAP within one week.
>>
