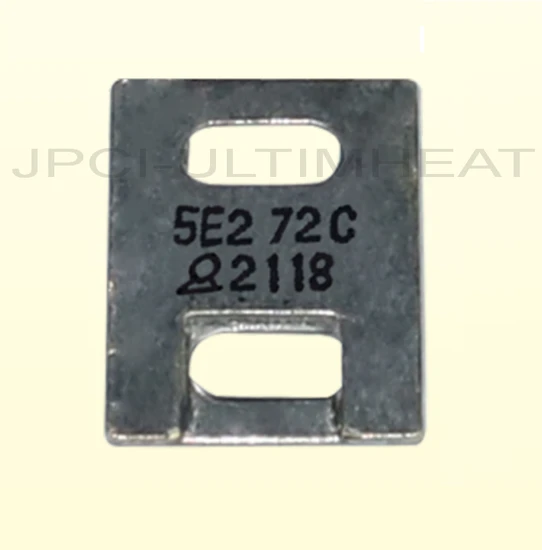

Miniature Eutectic Alloy Fusibe Links 72 Cesjus Fire Detection

Product Description

Product Description Specification

item	Value
Place of Origin	Guangdong,China
Brand Name	JPCI,ULTIMHEAT
Material	PLATED Brass
ROHS	NO
Temperature	72
Others temperature	Please contact us for checking the inventory
Hole distance	9.1MM
Thickness	0.3MM

REMARK : THIS MODEL IN STOCK IS 72 /NON-ROHS for more temperature optionsplease do kindly contact us. Manufactured in a fully automated way, these fire detection fuses are particularly economical for domestic applications in mechanical ventilation, extractor hoods. They are also externally coated with an alloy protecting them from corrosion. Material: Brass (possible realization in red copper if shorter response times are required). Surface Protection: Eutectic alloy. ROHS compliance: These fusible links are available in two versions. - Non-ROHS compliant, using traditional alloys containing lead and cadmium, for temperatures 68°C (155°F);72°C (162°F); 96°C (205°F); 103°C (218°F); 120°C (248°F). - ROHS compliant, using ternary alloys based on bismuth, tin and indium, (the high cost of indium makes these models 2 to 3 times more expensive than the previous ones) for temperatures 60°C (140°F); 72°C (162°F); 79°C (174°F); 109°C (228°F); 117°C (242°F). Identification: Model, temperature in °C and date of manufacture are printed on each fusible link. Tests: - Mechanical resistance at ambient temperature: 100% in production. - Trip temperature under static load: by statistical sampling. - Trip time in temperature rise under load according to ISO 10294-4: by statistical sampling. - Holding load 1h at 60°C or 90°C: compliant and verified by statistical sampling in production (Test according to ISO 10294-4). - Triggering under minimum load: compliant and verified by statistical sampling in production (Test according to UL33). Salt spray resistance: According to ISO9227-2012, subjected to a mist formed of 20% by weight of sodium chloride in distilled water, at 35°C for 5 days (120h), the apparatuses retain their aptitude for the function, in the response times specified by the standard. FAQ 1. Who are we?
We are the manufacturer with French technology and investment.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
The whole range of the heaters & controlsThermostats,pressure switches,level switches,flow switches,heaters
4. Why should you buy from us not from other suppliers?
Our company is ISO9001-2000 and ISO14001 international quality/environmental system certified and matches the most demanding foreign customer inspections.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW
Accepted Payment Currency: USD,EUR, HKD, CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese Packing&Shipping Option : By Aliexpressplease kindly do select the shipping method by yourself. Company Introduction Company profile:
Established in China since 2000, with French technology and investment, our company is proud to have more than 60 years experience in manufacturing electromechanical components and 30 years experience in manufacturing safety component for Spas, swimming pools and hot tubs. This experience, combined with high tech equipment and high tech raw materials let us develop the new components needed by rapid expansion of Asian and Chinese market.
In our new factory, on more than 8000 square meters production lines, we have two manufacturing divisions:
Division one is producing components:
Thermostats, energy regulators pressure switches, level switches, flow switches, fire detection fusible links, heating elements and ceramic connection blocks.
Division two is producing complete assemblies and sub assemblies on customer specifications:
Swimming pools heaters, heat pumps backup heaters, spas heaters, small water heaters, immersion heaters, aluminum foils heaters, baseboard and convection heaters sub assemblies
Our R&D team develops new products upon customer specification, taking care of international safety standard (UL, CE, etc.).
We produce our own stamping, bending, plastic injection, zinc alloy injection, and machining.
We are equipped with up to date automatic and CNC TIG welding and laser welding equipment and ultrasonic welding checking.
We have our own climatic room, corrosion testing loops, salt spray testing, and more than 30 specific equipments for products life testing.
Our income quality control laboratory is equipped to check raw material (plastics, metals) physical characteristics and dimensions.
Our finished product control laboratory has more than 200 machines to calibrate and check temperature, pressure, level and flow controls.
From the raw material to the finished product we control every production step. Meet your control equipment demand rapidly and safely is our consistent promises.
Basic Information Product/Service Sell: Flow switches, level switch,pressure switch, thermostat,heating elements, back up heaters for heat pumps Number of Employees:200 to 300 People
Main Markets:North America/South America/Eastern Europe/Southeast Asia/Africa/Oceania/Mid East/Eastern Asia/Western/Europe/Northern Europe/Southern Europe/Domestic Market Total Annual Sales Volume: US$2.5 Million - US$5 Million Exhibition Domestic : China Heat Pump Exhibition ,Shanghai city , 15th-17th March every year Oversea : It depends,normally in Europe,

---
