Plain SS filter screen

Product Details

Product Details

Product Description

Product Description

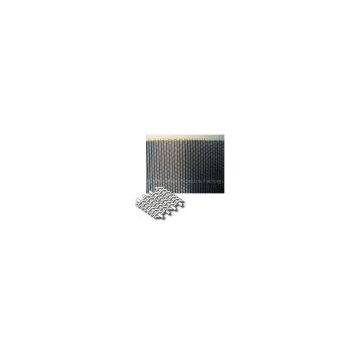

stainless steel Filtration mesh
The Stainless Steel Filtration mesh is also known as Stainless Steel dutch woven Filter cloth or Stainless Steel dutch woven Filtration mesh . For weaven types have Stainless steel plain dutch wire mesh and Stainless steel twilled dutch mesh .
The filter mesh must be keep the very good mesh can filtering separation well , we used the imports reeds of Germany for woven , the mesh or hole is smooth and beautiful .
The material have SS 304, 304L, 316, 316L .
the weaving type: plain dutch weave, twill dutch weave,
The woven mesh width : 0.5m-4m
Packing: water-proof paper ,woven bag ,wooden box and also can be made as per client requirement.
Plain Dutch weave: woven as a plain weave. Each warp wire and each weft wire passes over and under the next
adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the
weft wires. This allows a greater mesh count in the weft direction.

Mesh Count ( Warp x Weft)Wire Dia mm (Warp x Weft)Micron Rating
8 x 850.360 x 0.320320-340
12 x 640.580 x 0.420265-285
14 x 880.500 x 0.350215-235
24 x 1000.350 x 0.250115-125
30 x 1500.230 x 0.18095-100
40 x 2000.180 x 0.14070-75
50 x 2500.140 x 0.11455-60
80 x 4000.125 x 0.07140-45

Dutch twilled weave:Each warp wire and each weft wire passes over and under the next two adjacent
complementary wires, as in a normal Twill Weave, except the warp wires are larger in diameter than the
weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft
wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking
cloth thickness

Mesh
Wire Dia. (MM)
Microns
Material(AISI)
80meshX700mesh
0.102/0.070
0.043
304 or 316
165meshX800mesh
0.071/0.041
0.037
304 or 316
150meshX800mesh
0.069/0.053
0.035
304 or 316
200meshX600mesh
0.053/0.046
0.030
304 or 316
150meshX1000mesh
0.069/0.053
0.025
304 or 316
165meshX1400mesh
0.066/0.041
0.021
304 or 316
200meshX1400mesh
0.053/0.046
0.016
304 or 316
325meshX2300mesh
0.036/0.025
0.008
304 or 316

General Use: Filtering and screening in airspace, oil and chemicals.
