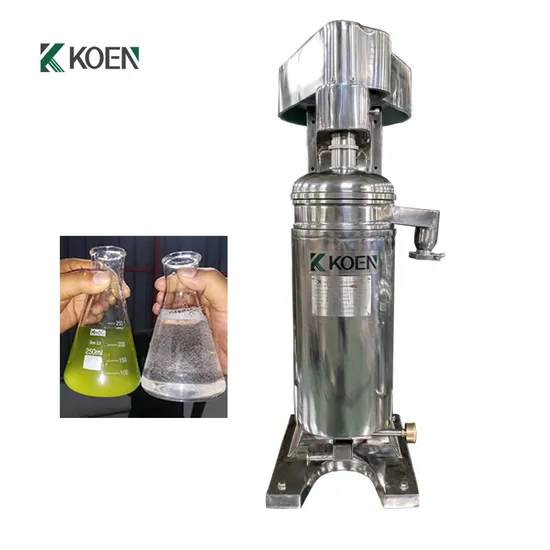

Gq75 300L/H Industrial Algae Biomass Harvest Tubular Centrifuge

Product Description

Product Description GQ75 300L/H Industrial Algae Biomass Harvest Tubular Centrifuge GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density
GQ type two phase solid-liquid separator is suitable for solid content lower than 2% solution ,widely used for juice ,herb,medicine , bacteria ,fermentation liquid ,clarification process . After separation , the solid will collect in the drum .Then stop the centrifuge and take out the drum for solid discharge .
Detailed Photos Product Parameters

Model	GQ75	GQ105	GQ125	GQ150
Drum Diameter	75mm	105mm	125mm	150mm
Rotating Speed of Drum	19000rpm	16300rpm	15000rpm	14000rpm
Centrifugal force	15200G	15620G	15700G	15600G
Capacity	600L/H	1200L/H	1500L/H	2500L/H
Motor	1.5kw	2.2KW	3.0KW	3.0KW
Weight	300kg	500kg	550kg	600kg
Dimension	760*450*1120mm	840*500*1600mm	900*550*1600mm	950*600*1600mm

Parallel pipeline circling pipe structure photobioreactor Vertical structure pipeline photobioreactor Company Profile Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer's requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.

---
