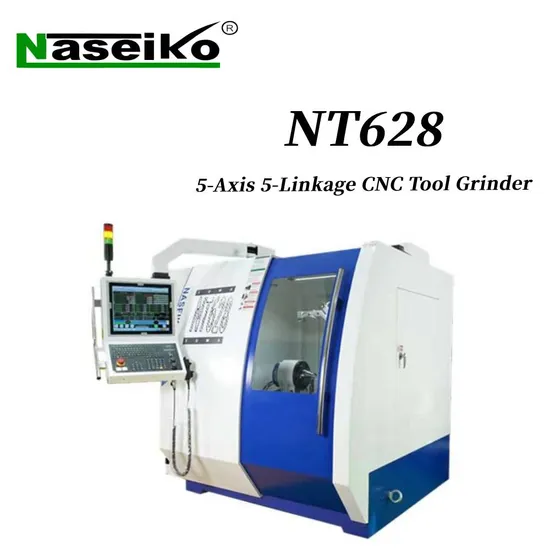

Naseiko Nt628 High Precision High Stability Linear 5 Aixs 5 Linkage CNC Tool Grinding Machine

Product Description

Detailed Photos
Product Description
Integral mineral casting bed, Japan screw guide rail and AB rotating shaft with DD direct drive motor.

The permanent magnet constant torque spindle motor, dual grinding head structure and 360 degrees rotating of B-axis for non-standard cutting tools procession.

Designed upon the concept of German 5-axis CNC grinding machines.

Designed by integrating the practical experience and guidance.

CNC System - SYNTEC New Generation, Taiwan, Software " Num "

Centralized automatic lubrication station - Shengxiang

Track - THK, Japan

Pneumatic system (solenoid valve, pressure reducing valve, air filter, etc.) - CHELIC, Taiwan

Detection head - Renishaw, UK

Spindle - Taiwan

Circuit accessories - Schn'der, France/Omron, Japan

Dividing Plate - Shengchang, Taiwan
Software
Product Parameters

PROJECT	UNIT	NT628
Japan servo motor drive (absolute value) stroke (X/Y/Z axis)	mm	500 / 470 / 250
CNC system resolution (X/Y/Z axis)	mm	0.0001
Minimum resolution for	mm	0.0001
programming of handwheel feed (X/Y/Z axis)
THK screw (X/Y/Z axis)	-	BN-FN32-C3
Repositioning accuracy (X/Y/Z axis)	mm	0.003
Guide rail (X/Y/Z axis)	mm	HSR30
Workpiece rotation axis (A/B axis)	-	rotation axis
DD servo drive (A/B axis)	-	direct drive
Rotary encoder (A/B axis)	-	RENISHAW, UK
Indexing accuracy (A/B axis)	-	2 arc seconds (0.0005 degrees)
Rated speed (A/B axis)	rpm	250 / 200
Maximum revolutions (A/B axis)	rpm	250 / 200
CNC system resolution (A/B axis)	degree	0.0001
360 degree rotation, indexing head body (A/B axis)	-	Could be installed with Shaw Berlin W25
		collet holder or BT50 knife handle
Quick movement (X/Y/Z axis)	m/min	7.5
Minimum diameter for clamping workpiece	mm	3
Maximum diameter for clamping workpiece	mm	1--20
Maximum length for clamping workpiece	mm	250
Minimum diameter for grinding workpiece	mm	1
Maximum diameter for grinding workpiece	mm	16
Maximum blade length for grinding	mm	≤100
Maximum workpiece weight	kg	5
Linear resolution	mm	0.0001
Linear repeat positioning accuracy	mm	0.003
Rotation resolution	mm	0.0001
Rotation Repetitive Positioning Accuracy	degree	0.001
Spindle power	kw	12 kw permanent magnet variable frequency motor
Grinding wheel diameter	mm	75-150
Grinding wheel spindle speed	rpm	4000-8000
Stepless adjustable	-	inverter
Machine weight	kg	4000
Total power	kw	≤29kw

Packaging & Shipping

Company Profile
Naseiko, a global leader in providing comprehensive solutions in the tungsten carbide industry, focusing on manufacturing high-quality tungsten carbide products and related sophisticated automatic machines, are committed to delivering integrated solutions to meet the needs of our worldwide customers in this industry.- Our extensive product line covers a wide range of applications in the tungsten carbide industry. We offer top quality products such as high precision CNC insert, milling cutter, carbide burrs, industry knife, wear-resistant components, carbide tools. These products are manufactured using advanced techniques and premium hard alloy materials, ensuring exceptional hardness, toughness, and wear resistance.

- Except supplying superior quality carbide products, Naseiko also provide a wide range of equipments and solutions specifically designed for tungsten carbide production. Our state-of-the-art equipment includes high-precision electric servo pressing machines, Five axis linkage CNC grinding machines, Five axis linkage CNC grinding machines, and all kinds of high precision carbide mold. Our advanced machines help our customers to enhance production efficiency, ensure high machining precision and maintain consistent product quality.
FAQ
Q: What is your product line?
A: CNC grinding machine, CNC mismatch grinder machine, Electronics servo press machine, Precision Grinding Wheel Dressing Machine. Carbide end mill, carbide burr, dental burrs, and other tungsten carbide items,etc.
Q: Is ODM or OEM production supported?
A: Yes.
Q: What is MOQ for your product?
A: For standard models machine, MOQ is 1 set ;
For OEM ODM customized machine, MOQ is from 10 sets.
For carbide tools, MOQ is from 1000 units.
Q: How long is the delivery time?
A: For standerd Naseiko machine, it is about 1-2 months after order confirmed;
For customized machine, it will be 6~12 months after order confirmed;
For customized milling cutter or carbide burrs, it is about 1 month.
Q: Where is your loading port?
A: Shanghai / Guangzhou ,China port.
Q: How do you implement equipment warranty overseas?
A: At present, we have contracted after-sales service points overseas, and in the future, we will establish our own after-sales service centers in key overseas markets.
Q: What are your benefits superior to other suppliers?
A: Naseiko Intelligent technology is a manufacturing enterprise with years of industry experience, focusing on the research and production of CNC tool grinders. Our team has rich experience and professional knowledge in this field. We have international advanced testing equipment, excellent craftsmanship and refine quality management system, as well as professional team. It ensures our products stable and reliable.

---
