Made in China API Drill Pipe 2 7/8′ ′ 1.50m and 3.00m/Drill Rod for Oil Drilling

Product Description

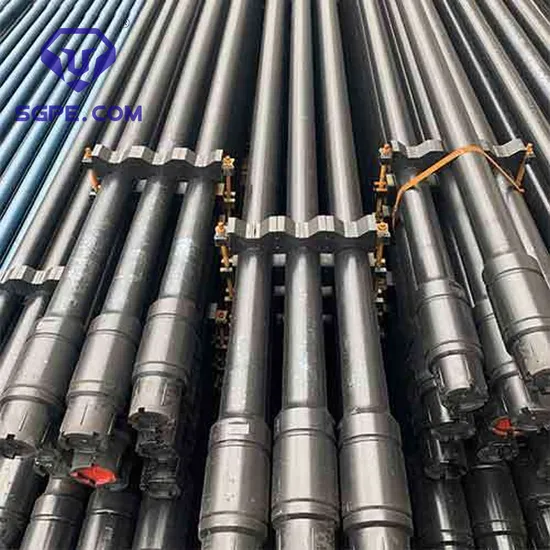

API 5DP oilfield drilling rig seamless G105 NC26 2 3/8" drill pipe
API 5DP oilfield drilling rig seamless G105 NC26 2 3/8" drill pipedrill pipe comply with the provisions under the Standards API SPEC 5DP and API SPEC7. The grade of steel for the drill pipe willbe determined according to the requirements of Group 1 and Group 3 of API SPEC 5DP.(i.e.: Group 1--Grade E; Group 3--Grade X-95, Grade -G-105 and Grade -S-135)As per requirements of customers, drill pipe joints at the same level will be provided, and manufactured drill pipe joints willcomply with the provisions under the Standard API SPEC 7.
Seamless G105 Drill Pipe
Nc50 API Drill Pipe
Welcome to consult, we will provide the most comprehensive technical support!

Size		Weight	Grade	Wall thickness		Upset types
Inch	mm			Inch	mm
2 3/8	60.3	6.65	E.X.G.S	0.28	7.11	EU
2 7/8	73	10.4	E.X.G.S	0.362	9.19	IU,EU
3 1/2	88.9	9.5	E	0.254	6.45	IU,EU
3 1/2	88.9	13.3	E.X.G.S	0.368	9.35	IU,EU
3 1/2	88.9	15.5	E	0.449	11.4	IU,EU
3 1/2	88.9	15.5	X.G.S	0.449	11.4	EU,IEU
4	101.6	14	E.X.G.S	0.33	8.38	IU,EU
4 1/2	114.3	13.75	E	0.271	6.88	IU,EU
4 1/2	114.3	16	E.X.G.S	0.337	8.56	EU,IEU
4 1/2	114.3	20	E.X.G.S	0.43	10.92	EU,IEU
5	127	16.25	X.G.S	0.296	7.52	EU
5	127	19.5	E	0.362	9.19	IEU
5	127	19.5	X.G.S	0.362	9.19	EU,IEU
5	127	25.6	E	0.5	12.7	IEU
5	127	25.6	X,G,S	0.5	12.7	EU,IEU

---
