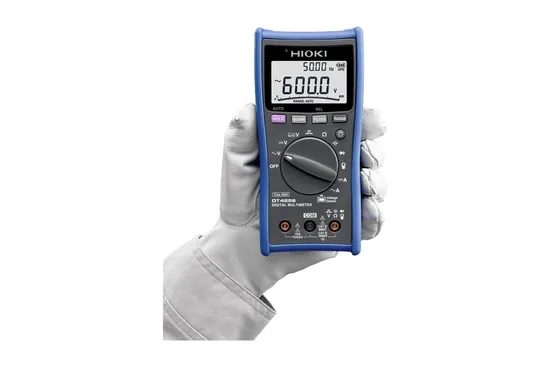

Multifunctional digital multimeter- DC current 60.00mA / 600.0mA / 6.000A / 10.00A- Accepts an AC clamp sensor.- Voltage detection function Basic specificationsAccuracy guaranteed: 1 yearDMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.
DC Voltage range| 600.0 mV to 1000 V, 5 rangesBasic accuracy: ±0.3 % rdg. ±3 dgt. |
AC Voltage range| 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHzBasic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
AUTO AC/DCV| Yes |
Resistance range| 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±3 dgt. |
DC Current range| 60.00 mA to 10.00 A, 4 ranges,Basic accuracy: ±0.9 % rdg. ±3 dgt. |
AC Current range| 600.0 mA to 10.00 A, 3 ranges,Basic accuracy 40 - 500 Hz : ±1.4 % rdg. ±3 dgt.(True RMS, crest factor 3, 40 Hz to 1 kHz) |
AC Current range(use with Clamp on probes)| 10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
Voltage detection(50/60 Hz)| Hi: AC40 V to 600 V, Lo: AC80 V to 600 V |
Capacitance range| 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt. |
Frequency range| 99.99 Hz (5 Hz or more) to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage and current),Basic accuracy: ±0.1 % rdg. ±1 dgt. |
Continuity check| Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED),[OFF]: 245 Ω or more, Response time: 0.5 ms or more |
Diode test| Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,Threshold of forward voltage: 0.15 V to 1.5 V |
Other functions| Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option) |
Display| Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph |
Display refresh rates| 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s ) |
Power supply| LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF) |
Dimensions and mass| 84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D,390 g (13.8 oz) (including batteries and holster) |
Included accessories| Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4 |
