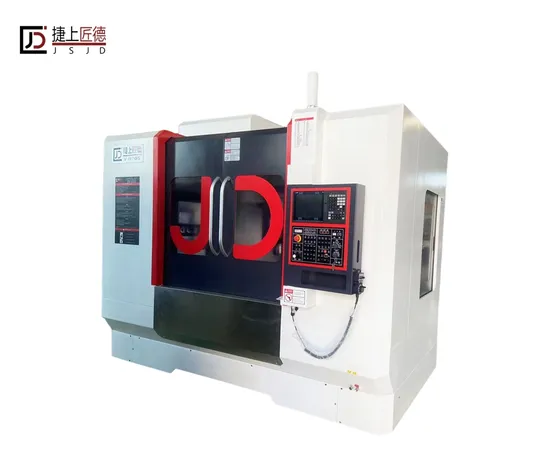

High Precision V-1170s CNC Machine Tool Metal 3 Axis CNC Machine Vertical Milling Machine

Product Description

Product Description


Product Parameters
Specification Of The V-1170S CNC Machine Tool

Specification		Unit	V-1170S
Travel	X axis	mm	1100
	Y axis	mm	700
	Z axis	mm	700
Controller	System		Fanuc:Oi-MF/Siemens/Syntec:220MA/Mitsubishi:M80
	Total axes		3
Accuracy	Positioning accuracy	mm	±0.005/300
	Repositioning accuracy	mm	±0.003/300
Spindle	Spindle taper		BBT40-ø150
	Spindle speed	rpm	10000/12000/15000
	Spindle drive type		belt/direct
	Spindle center to column	mm	717
	Spindle end face to work table	mm	130-830
Table	Table size	mm	1200×600
	Table load	kg	1000
	T-slots	mm	5-18×100
Guide rail	X/Y/Z axis ball screw	mm	4012/4012/4012
	X/Y/Z axis guide rail type		linear
Tool magazine	Number of tools	T	24
	Tool length/weight		300mm/8kg
	Tool diameter (full/adjacent empty)	mm	ø80-ø150
Motor power	Spindle motor	kw	11
	X/Y/Z axis servo motor	kw	3/3/3
	Coolant pump motor	w	750
Feed	Rapid feed	m/min	36/36/36
	Cutting feed	m/min	10/10/10
Others	Power	kva	25
	Air pressure	kg/cm2	6
	Dimensions	mm	3100×3300×3050
	Weight	T	8

More products

Specification	Unit	V-640S	V-850	V-855	V-860S	V-1160	V-1170S	V-1380	V-1580
Three-axis travel (X/Y/Z)	mm	600/430/440	800/500/500	820/550/550	820/560/570	1100/600/600	1100/700/700	1300/700/735	1500/800/750
Table size	mm	700×420	1000×500	1000×550	1000×550	1200×600	1200×600	1500×800	1700×800
Table load	kg	250	600	800	800	1000	1000	1500	1500
T-slots	mm	3-14×125	5-18×100	5-18×90	5-18×90	5-18×100	5-18×100	5-18×145	5-18×145
System		Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi
Spindle speed	rpm	12000	10000 12000 15000	10000 12000 15000	10000 12000 15000	10000 12000 15000	10000 12000 15000	8000 10000 12000	8000 10000 12000
Spindle taper		BT40	BBT40	BBT40	BBT40	BBT40	BBT40	BBT40/BT50	BBT40/BT50
Spindle center to column	mm	467	570	560	630	660	717	866	871
Spindle end face to work table	mm	130-570	120-620	120-670	120-690	120-720	130-830	145-880	150-900
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11	11	11/15	11/18
Rapid feed	m/min	48/48/48	48/48/48	36/36/36	36/36/36	36/36/36	36/36/36	16/16/16	16/16/16
Cutting feed	m/min	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repositioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300

Company Profile
FAQ
Q1:What's your main products of your company?
A1:We manufacture all kinds of CNC machine tools ,such as Vertical Machine Center, Horizontal Machine Center, 5 axis Machine Center, Gantry Machine Center, Engraving Machine Center.
Q2:How can I choose the most suitable machines ?
A2:If you are the factory, please tell us your specification request or workpiece drawing, we will suggest the suitable model for you.
If you are the trading company, please tell us your customer's request or we can introduce various models of our company.
Q3:Where is our factory located? Can I visit there?
A3:Our factory is located in Dongguan City, Guangdong Province, China. You are warmly welcome to visit us.
Q4:How is the warranty?
A4:One year.We will do our best to serviced.
Q5:How long is the delivery time for our products?
A5:Twenty days to one month.
Q6:How about your quality?
A6:We have approved the ISO9001:2015 Quality management system and CE European safety standards. Our products are exported to Russia, Vietnam and other countries.
Q7:What is the package?
A7:The machine is by waterproof cloth to covered. And a packed by standard exported wooden case. It is very safety for oversea transportation.
Q8:What's the Payment Terms ?
A8:T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.

---
