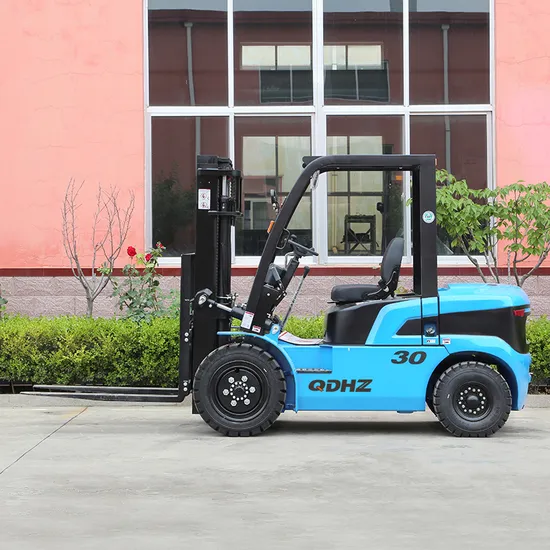

China Factory Direct Sale 3ton Diesel Truck Forklift with Attachment

Product Description

General	1	Model				CPC 30
	2	Rated Load Capacity			kg	3000
	3	Loader Center			mm	500
Dimensions	4	Lifting Height			mm	3000
	5	Free lifting Height			mm	135
	6	Fork Size		LxWxT	mm	1220×122×45
	7	Mast Tilting Angle		F/R		6/12
	8	Length(without fork)			mm	2750
	9	Overall Width			mm	1225
	10	Mast Hight After Mast Fall			mm	2070
	11	Lift Height			mm	4100
	12	Overhead Guard Height			mm	2150
	13	Turning Radius			mm	2515
	14	Front /back Overhang			mm	480
	15	Min.Right Angle Channel Width			mm	2545
	16	Wheelbase			mm	1760
	17	Track		Front	mm	1000
	18			Rear	mm	970
	19	Ground Clearance	Mast		mm	130
	20		Car Center		mm	200
Tire	21	Front Tire				28×9-15
	22	Rear Tire				650-10
Performance	23	Speed	Travel	Full Load	km/h	18
	24			No load	km/h	19.5
	25		Lifting	Full Load	mm/s	450
	26			No load	mm/s	500
	27		Lowering	Full Load	mm/s	450
	28			No load	mm/s	500
	29	Max.Drawbar Pull		Full/No Load	kg	1696/1190
	30	Max.Gradeability		Full/No Load	%	15/18
Weight	31	Total Weight			kg	4230
Pover&Transmission	32	Battery	Voltage/Capacity		V/AH	12/80
	33	Engine	Model			Xinchai 4D27G31
	34		Rated Pover/Speed		Kw/rpm	36.8/2500
	35		Max.Torque/Speed		N.m/rpm	157/1800
	36	Work Pressure			Mpa	17.5
	37	Fuel Tank Capacity			L	60
	38	Tranmission Type				Automatic

QingdaoHezhong Machinery Manufacturing Co., Ltd. is among the major Machinery manufacturers in China with a history of international cooperation and shared technologies since 2007.
The company is located in Pingdu, Qingdao, covering an area of more than 50, 000 square meters. It is divided into three major factories, which accounts for R & D department and production plants. The company has more than 400 employees, including 55 engineers dedicated in new product innovation in the construction machinery industry.
Qingdao Hezhong Heavy Industry Co., Ltd. Has an annual capacity of more than 15000 mini wheel loaders, sweeper forklifts. All the products meet all the internationally required manufacturing standards and Quality control certifications including CCC, ISO 9001, ISO 16949, CE and EGS etc.
Believing in quality, commitment, and partnership, we are always ready to run all over the world.
Application
1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.
2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.
3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.Our Advantage
QingdaoHezhong Machinery Manufacturing Co., Ltd. is a modern enterprise focusing on the R&D, manufacturing, sales and service of loaders and forklifts. The company has a group of knowledgeable and professional technical teams dedicated to product development and research. Customers provide the most considerate and reasonable products, and can also meet customers' special order requirements.We do business all over the world, we won the trust of customers with high-quality products and complete after-sales service.
