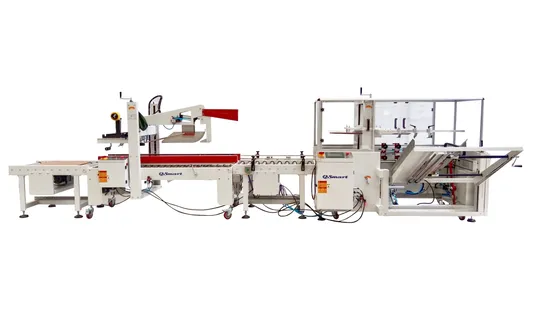

Automatic High Speed Tape Sealing Vertical Type Case Carton Box Unpacking Machine

Product Description

Automatic High Speed Tape Sealing Vertical Type Case Carton Box Unpacking Machine
Product DescriptionAutomatic carton forming machine is a packing machine that handles unpacking, carton bending and packaging.
The speed can reach 10-12 boxes/min PLC with interface control, the whole process is not shut down, that is, the suction box, forming, folding bottom, sealing, easy operation and maintenance, stable.
The machine adopts PLC and touch screen for control. Easy to do. Greatly reduce packaging costs.
Suitable for food, medicine, beverage, daily necessities, hardware, electronics and other industries.
Features: 1. Siemens PLC controller and touch screen, friendly interface, visual operation.
2. Using cardboard vertical storage, can store 60-80 boxes, can add cardboard at any time, without closing.
3. Easy to adjust the machine parameters to adapt to various sizes of cartons.
4. Unfold the folded carton board, close the bottom and seal it automatically with tape.
5, imported pneumatic, electrical components to ensure long-term trouble-free operation.
6. Automatic alarm and shutdown system when failure occurs.
7. Tool safety system to prevent cutting tools from hurting hands.
Product ParametersPacking machine(into the box):

Model	Custom
Packing methodpe	drop type
Packing speed	4-6 boxes/min
Power supply	three-phase 380V, 50HZ
Power	5KW
Air pressure	0.6KPa
Main frame material	carbon steel spray (main color: white; Warning color: Red)
Material of other parts	Carbon steel electroplated parts/stainless steel
Including whole column, strut box, box
Height of the whole column of feed :1200mm
Inlet height :600mm

unpacking machine:

Applicable carton	L280-500*W160-400*H160-400mm
Table height	650mm
Unpacking speed	1-10 cases/min
Mechanical size	L2000*W1955*H1485mm (actual)
Operating voltage	220/50HZ.
Powe	400W
Air pressure	6kg.f/cm²
Machine weight	400kg

box sealing machine:

Carton size	L200-600*W150-500*H150-500mm
Table Height	600~750mm
Belt speed	18-20m/min
Mecanical size	L1700*W830*H1450mm
Use of voltage	220/380V,1f,50HZ.
Adhesive paper	48/60/75mm*900/LOPP
Power	400W
Air pressure	5kg.f/cm²

Application scenario
Shipment willDelivery photoOur products are shipped in wooden cases.
Cooperative customerThis is our Russian customer came to the factory to inspect the tracking filling capping production line.
Certifications our company is a practical high-tech enterprise with modern office area, 33,000 square meters factory and more than 40 kinds of invention patents.Has passed the CE, ISO9001:2005 quality system standard.
Other product links:
https://qsmartgroup.en.made-in-china.com/product/VETUfpnvqscW/China-Manufacturer-High-Precision-2-Head-Tracking-Detergent-Filling-Machine.html
https://qsmartgroup.en.made-in-china.com/product/ZmeUJgsCfSWc/China-Automatic-Single-Sided-Double-Sided-Box-Packing-Egg-Labeling-Machine.html
Our factory is very close to Shanghai, you are welcome to visit our company at any time.

---
