FTTH 1 Ports Optical Micro Termination Box for Sc Adapters

Product Description

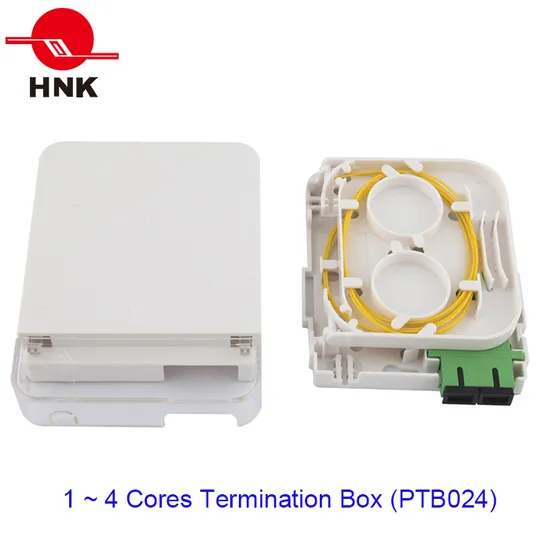

PTB024 is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port.
TB024 covers the capacity of 1core, 2cores and 4 cores. It supports splicing, distribution, mechanical connection and wall
mounted installation.
Product Features
. Excellent ergonomics design, graceful appearance and convenience operation.
. White color, graceful style and good adaptability to environment.
. Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
All the materials complied with ROHS standard.
. Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
. Plug fiber without having to open the shell, easily accessible fiber operation,
With rotated transparent cover, port vertically downward to avoid causing personal injury.
. Remarkable laser warning identification.
. Easy operation, saving installation working hours, lower costs.
Specifications

Working Temperature	-25~+60°C	Storage Temperature	-40~+70°C
Humidity	93%(+30°C)	Air Pressure	70KPa~106KPa
Size (W×H×D) mm	86×115×23	Weight (kg)	0.1
Color	White	Material	ABS+PC
Number of Outlets	1	Number of Cable Entre Points	3
Capacity (Cores)	1, 2, 4	Installation Models	Desktop or Wall Mounted
Connect Models	Fusion splicing, Mechanical Splicing	Drop Cable (Flat)	Indoor Flat Drop cable 2mm×3mm
Drop Cable (Round)	Φ5mm~Φ7mm	Curvature Radius (mm)	≥15

Ordering Sample

Part Number	Description
PTB024-01E	1 port PTB024 type termination box, without adapter and pigtail.
PTB024-01FLPBLG652D05	1 port PTB024 type termination box with duplex LC adapters and 0.5M singlemode LC/PC pigtails.

---
