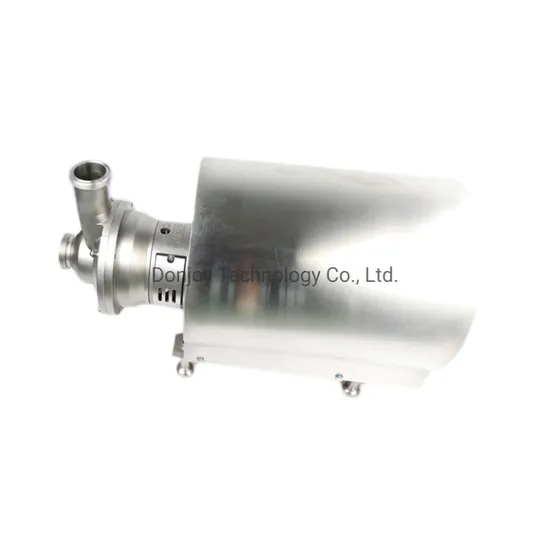

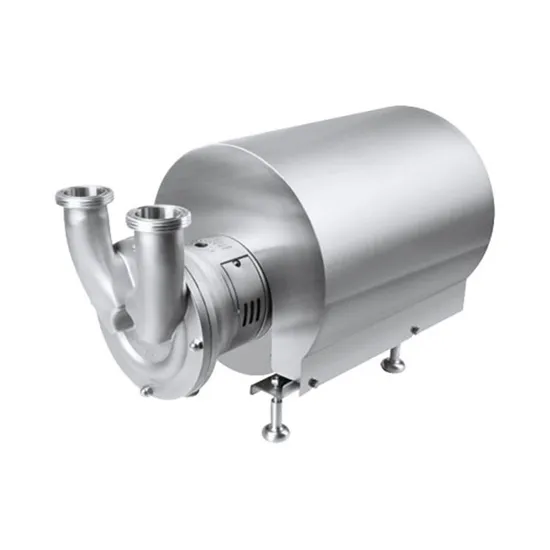

CIP stainless steel hygienic centrifugal pump with self priming function
Solution for high efficiency, low noise, simple and economic maintenance, high cleanliness, stainless steel motor, IP69,
submersible, pump head in clamp connection which is easy to be cleaned and could be completely machine washable.
SLX series centrifugal pump is designed in fully stainless steel including motor. It not only optimize the internal structure such as impeller design, but also optimize external sanitation of the pump, which makes the internal absolute sanitary and external reduction of dead angle. As to it, such pump is very easy to be CIP and SIP.
| Product Name: | Full Stainless Steel Centrifugal Pump |
| Material: | SS304/SS316L |
| Sealing: | EPDM (Standard, FDA approval), FPM and NBR |
| Max. Flow: | 120 m3/h |
| Max. Speed: | 3600 min-1 |
| Max. Head/lift: | 70H(M) |
Max. Working Temperature:
| 140 °C
|
| Mechanical seal: | SIC/SiC/EPDM(Standard), C/SIC, TC/TC, single or double mechanical seal |
| Motor power: | 1.5~22KW |
| Voltage: | 110V, 220V, 380V |
| Motor: | ABB/Domestic/Siemens |
| Motor Frequency: | 50HZ, 60HZ |
| Surface treatment: | Internal polished 0.8μm (standard), 0.6/0.4 is optional |
| Model: | SLX |
| Availably connection: | Clamped, Threaded, Flanged etc. |
| Availably standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | Electric motor |
| Certificate: | 3A-02-10 (NO.:1579), MD/06/42-EC(NO: 70521616101-00),
FDA 177.2600, USP CLASS-II, EG/VO 1935/2004 |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic etc |
| Packaging Details: | Plywood case |
Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.
