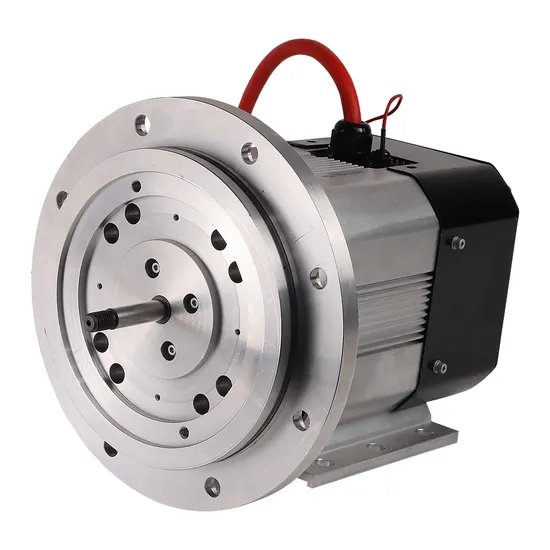

7.5kw 24000rpm High Speed Permanent Magnet Electric Motor

Product Description

7.5kw 24000rpm High Speed Permanent Magnet Electric MotorProduct ParametersProduct Name: 3-Phase 7.5kw 24000rpm High Speed Permanent Magnet Electric Motor
Keywords: Fan Motor, Motor, High Speed Motor, Synchronous Motor, Permanent Magnet Motor, Electric Motor, Brushless Motor, AC Motor, Electrical Motor, Air Cooled Motor, Small Size Motor, Compressor Motor, Blower Motor, Pmsm Motor
Attributes: Industrial Application, High Speed Rotation, Three-Phase Stator
Description: This air cooled 7.5KW 24000RPM high speed permanent magnet AC electric motor is perfect for industrial applications. Its three-phase stator ensures efficient performance, while its compact size makes it ideal for various uses. Product DescriptionIntroducing the Air Cooled Motor by MC Motor Technology Co., Ltd.
Features:Air cooled motor for efficient operationExtra high speed of up to 24000rpmCompact size measuring L235mm*Φ260mmLightweight design weighing only 19KGLong lifetime, durability, and easy maintenanceApplication:Perfect for use in turbines, fans, blowers, and centrifugal compressors.
Product DescriptionIntroducing the SRPM112H4F7-5C Motor by MC Motor Technology Co., Ltd.
Specifications:Model#: SRPM112H4F7-5CVoltage: 380V ACRated Power: 7.5KWRate Torque: 2.98 N.mWorking Speed: 24000rpmEfficiency: 95.5%Duty Type: S1Isolation: HWater/Dust Proof: IP54Pole Number: 4N Weight: 19KGCooling Method: Forced air coolingExperience the power and reliability of the SRPM112H4F7-5C Motor. With a voltage of 380V AC and a rated power of 7.5KW, this motor is designed to deliver exceptional performance. The rate torque of 2.98 N.m ensures smooth and efficient operation, while the working speed of 24000rpm allows for high-speed applications.
With an efficiency rating of 95.5%, this motor maximizes energy usage, reducing costs and environmental impact. The S1 duty type ensures continuous operation, making it suitable for various industrial applications.
The SRPM112H4F7-5C Motor is built with H isolation, providing enhanced safety and protection. Its water and dust-proof IP54 rating ensures durability and reliability even in challenging environments.
Featuring 4 poles, this motor offers stable and consistent performance. With a weight of 19KG, it is lightweight and easy to handle. The forced air cooling method keeps the motor cool, preventing overheating and prolonging its lifespan.
Choose the SRPM112H4F7-5C Motor for your industrial needs and experience the power, efficiency, and reliability it offers. Trust MC Motor Technology Co., Ltd. for high-quality motors that meet your requirements.
Detailed Photos
Company ProfileMC MOTOR VEDIO SCRIPT
MC Motor Technology Co., Ltd is a leading high-tech enterprises which focuses on the design, research and manufacture of the new generation high speed permanent magnet motors, which are widely used in industrial, agriculture, mining, building service, water-treatment, automotive and other new emerging industries.
Further inquiry, please scan below QR barcode for more information
In the past few years, MC Motor leads a series of technological innovations, and made remarkable achievements, includes:
Obtains worldwide reserved intellectual property rights about approximately one hundred core technologies, most of which have been successfully applied to our motorsAchieved more than 50 new designed PM high speed motors from 5KW to 350KW, 3000rpm to 60000rpm, which have much higher efficiency, power density, reliability and smaller size & lighter weight than other similar PM motor.Forms mature production lines and professional & excellent teams of management, R&D, marketing and sales, obtains very good reputation from our clients world-widely. MC MOTOR has international standard QC management system to make sure every production process strictly complies with ISO9001-2015,IATF16949 and ISO14001
MC MOTOR not only provides motors, but also develop customized solutions which can perfectly work with other facilities based on our clients' requirements. Call or email us with your requirements, we would be honor to further discuss more details.
Other ModelsOther models you may interested in:

Motor type	Voltage (V AC)	Rated power (kw)	Rated torque (N.m)	Rated speed (rpm)	Efficiency (%)	Duty type	Insulation	Ingress protection	Pole Number	Net Weight (kg)	Cooling Method	position signal
SRPM112H4F15	380	15	5.97	24000	95.5	S1	H	IP54	4	25	Forced Air	Resolver
SRPM112H4F18.5	380	18.5	8.41	21000	95.5	S1	H	IP54	4		Forced Air	Resolver
SRPM130H4F22	380	22	10	21000	95.5	S1	H	IP54	4		Forced Air	Resolver
SRPM130H4F37	380	37	19.63	18000	95.5	S1	H	IP54	4		Forced Air	Resolver

Packaging & Shipping
Packaging:<div>Composite wooden or paper box is optional for the 3-Phase 380-440VAC 7.5kw 24000rpm High Speed Permanent Magnet Electric Motor by MC Motor Technology Co., Ltd. This motor is ideal for industrial applications, with a high-speed rotation and a three-phase stator.</div>Permanent Magnet Synchronous MotorMC Motor Technology Co., Ltd. presents the Permanent Magnet Synchronous Motor, a versatile and efficient solution for various applications.
Features:Can be used as a generatorRequires a suitable motor controller with AFE function for generator operationCannot directly use three-phase AC supply voltage for motor startup due to rotor inertiaRequires a vector control VFD with special inner software for optimal performanceCompatible with different VFD with different brandsMC Motor Technology's MH300 series VFD is recommended for use with this motorProvides protective measures against rotor failure, including corrosion resistance and high-temperature demagnetization testsDemagnetization index within 2%Can be used in variable frequency speed situationsBenefits:Efficiently converts mechanical energy into electrical energy when used as a generatorEnsures smooth motor startup by using a suitable motor controllerOptimal motor performance achieved with vector control VFDsWide compatibility with leading VFD brandsMC Motor Technology's MH300 series VFD offers seamless integrationReliable and durable rotor design with protective measuresMinimal risk of demagnetization even in challenging environmentsFlexible usage in variable frequency speed applicationsChoose the Permanent Magnet Synchronous Motor from MC Motor Technology Co., Ltd. for reliable and efficient motor solutions.

---
