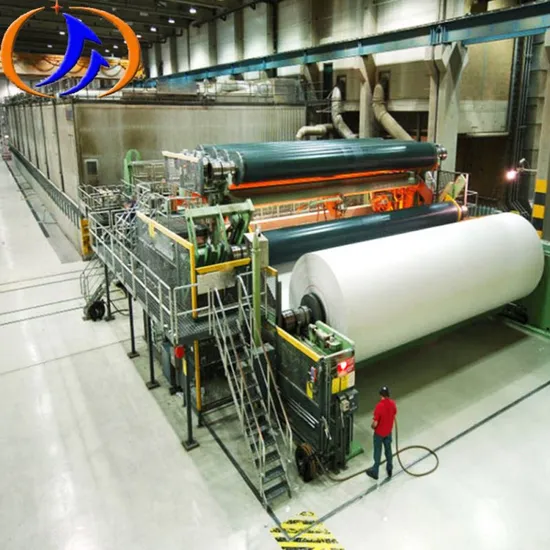

Hot Selling A4 Copy Paper, Printing Paper Making Machine

Product Description

Product parameters

Paper making machine technical specification:
Main Product:	Culture paper, A4 paper, writing paper, etc
Grammage:	40~100g/m2
Equipment form:	Double circle net double cylinder
Capacity:	8-9T/24h
Raw paper width:	1880-1950mm
Design speed:	100m/min
Transmission speed:	40-80m/min
Roller balance:	G2.5 class
Dryer balance:	G4 class
Winding paper roll:	G1.6 class
Transmission mode:	Ac motor frequency control of motor speed digital distribution
Arrangement mode:	Right or left arrangement(selected by the user)
Gauge:	2700mm
Large equipment 1	Dryer cylinder:Ø2000mm×2
Large equipment 2	Cylinder mould:Ø1500 mm×2

Technical requirements:	Requirements of water, steam ,hydraulic press and compressed air
1.Clear and clarified water :	Pure, colorless and sand removal. PH: 6~8
The power supply parameters: (This parameter is the power supply parameter in China. If it is different, it can be supplied according to customer's requirements.)	AC voltage: High voltage·380/220V±5% Hz: 50Hz±1% Control voltage: 220/24V
3.Steam pressure:	The highest working pressure of dryer is 0.5MPa
4.Air compressed:	Origin pressure:0.6~0.8MPa; Working pressure:0.3~0.4MPa

Process flow of waste water recovery and reuse
Transmission system

No.	Name	Power	Quantity	Technical requirements
1	Transmission section		5	AC motor * Electromagnetic speed control transmission
1-1	Press section	30Kw	1	ZLY200 hard surface gearbox
1-2	First cylinder group	18.5Kw	1	ZLY160 hard surface gearbox
1-3	Second cylinder group	18.5Kw	1	ZLY160 hard surface gearbox
1-4	Calender machine	22Kw
1-5	Reeling section	5Kw	1	ZQ250 gearbox
2	Roots vacuum pump	22Kw	1	ZBK16 type

Workshop
Equipment Introduction
Certifications
Company information
Qingdao YiDaFa International Trade Co., Ltd is located in Free Trade Zone, Qingdao, Shandong, China. The registered capital of our company is RMB 5 million. We have 6 production areas, 129 team members, including 39 technical experts, who have rich experience in the field of paper machine design. The main products of our company cover a variety of paper machinery, paper products processing machinery and related parts. We have done this business for more than 20 years in China. In 2014, we founded international trade department in order to stand in the international market.
Our mission is to be the leader in paper machinery field. Our principle is Science, Quality and Green. As we know, environmental pollution and waste of resources are two prominent problems in the traditional paper industry. To advocate the concept of global environmental protection, each of our paper machines has the advantages of energy saving, high efficiency and reducing pollution. Especially in waste water recycling use, we have unique processing technology.
Welcome any customers from all over the world to contact us freely. It is our sincere hope that we can establish a long-term and stable friendship with our strategic partners. Then we will work and explore together to create a brilliant future.
Customer visit
Packing&Shipping
FAQ:
1.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.

---
