Product Details
Product Description
Product Description

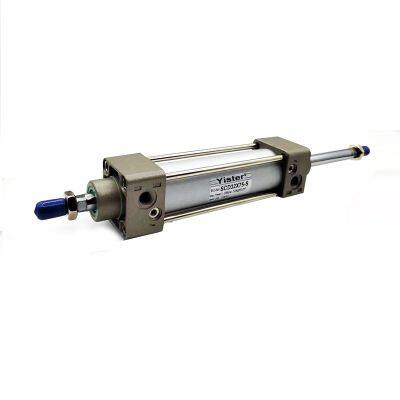

Airtac type SCD series double acting double rod pneumatic air standard cylinder with magnetic
Order code for magnetic pneumatic cylinder
Symbol for pneumatic cylinders
Technical parameter
Bore size(mm)
| SC32
| SC40
| SC50
| SC63
| SC80
| SC100
|
Acting type
| Double acting
|
Fluid
| Air
|
Mounting type
| SC
| Basic FA FB CA CB LB TC TCM1
|
SCD,SCJ
| Basic FA LB TC TCM1
|
Operating pressure
| 0.15~1.0MPa
|
Proof pressure
| 1.5MPa
|
Temperature ℃
| -5~60
|
Speed range mm/s
| 30~800
|
Cushion type
| Variable cushion
|
Adjustable cushion stroke
| 21
| 28
| 29
|
Port size
| 1/8”
| 1/4”
| 3/8”
| 1/2”
|
Stroke
Item no
| Bore size (mm)
| Standard stroke (mm)
| Max.stroke (mm)
| Allowable stroke (mm)
|
SC SCD SCJ
| 32
| 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500
| 1000
| 1800
|
40
| 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
| 1200
| 1800
|
50
| 1200
| 1800
|
63
| 1500
| 1800
|
80
| 1500
| 1800
|
100
| 1500
| 1800
|
Dimension
Feature
.SCD series Air Cylinder Double Acting Standard Pneumatic Cylinder meets Airtac standard
.There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.
.We can offer different kinds of mounting style according to Airtac standard, like Foot mounting, Front flange mounting, Rear-flange mounting,and so on.
.Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT etc.
.Don’t need lubricate on piston rod by oil
About us
Yister specialized in manufacturing pneumatic standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
Packing&Shipping
FAQ
Q:Do you accept OEM?
A: Yes, we offer OEM service.
Q:What certificates can you offer?
A: CE, ISO9001 certificates.
Q:What products do you make and sell?
A: Pneumatic cylinder:DNC series standard cylinder, SU series air cylinder, SC series pneumatic air cylinders
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Mechanical valve
Hand valve
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
Q:Could i buy 1pcs double acting double shaft pneumatic cylinder first and small order ?
A: Of course, support sample order and small order, especially for new customers under certain condition.
Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
>>
