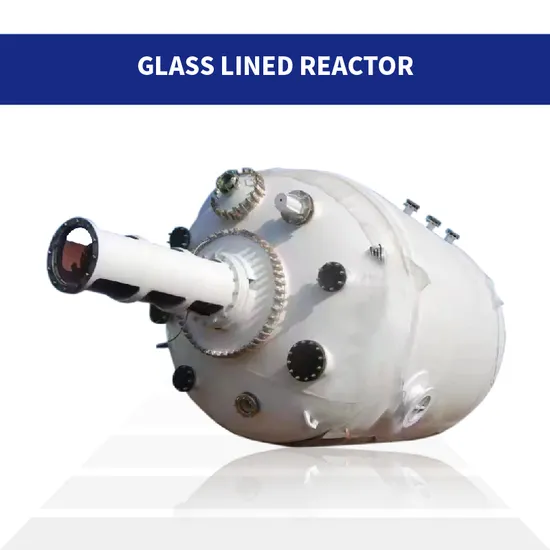

Glass Lined Reactor 6300L / Enamel Reactor Mixing Tank / Huateng Datang

Product Description

Product specification: 50000L-80000L
Product standard: GB25025-2010, GB/T 150-2011
Product use: This glass-lined reactor is mainly used for large-scale chemical and pharmaceutical experiments. The glass-lined reactor is also suitable for precision conditions of large-scale production in chemical and pharmaceutical industries. Closed glass lined reactor is widely used in medium chemical, petroleum, medicine, pesticide, food, dyes and other industries, is the hydrolysis, neutralization, crystallization, mixing, emulsification selection equipment.

Symbol	Nominal size		Name	Standard	Form	Pipe orifice/connecting pipe		Welding nodes
	PN	DN				Specification	Extension
M	/	600	Manhole	/	/	φ600 Internal diameter	/	DU4
G	/	250	Mixing hole	Connection size with mechanical seal	RF	250 Internal diameter	/	DU4
T1T2	10	400	Thermometer hole	HG/T20592-2009	RF	400 Internal diameter	/	DU4
S1S2	10	150	Visual hole	HG/T20592-2009	RF	φ130 Internal diameter	/	TG-A
N1~N4	10	200	Spare hole	HG/T20592-2009	RF	φ190 Internal diameter	/	TG-B
N5	10	200	Spare hole	HG/T20592-2009	RF	φ190 Internal diameter	/	TG-A
B	10	150	Discharge hole	HG/T20592-2009	RF	φ130 Internal diameter	/	TG-B
L1~L3	10	100	Water and steam inlet and outlet holes	HG/T20592-2009	RF	φ108X6	/	G2
P1	10	100	Cooling water inlet	HG/T20592-2009	RF	φ108X6	/	G2
P2~P5	10	80	Nozzle hole	HG/T20592-2009	RF	φ89X6	/	/
g	/	20	Exhaust hole	GB3289.1-82	Screw thread	G3/4"
K	/	15	Blow-waste hole	GB3289.1-82	Screw thread	G1/2"

Series		FF Series
Basic Model		FF380	FF380	FF380	FF380
Normalt Volume(L)		50000	60000	70000	80000
Actual Volume(L)		55570	66700	77800	85730
(Mpa)	Body	0.4	0.4	0.4	0.4
	Jacket	0.4	0.4	0.4	0.4
Area of h.exch (M)²		58.5	68.9	81.48	90.1
Type of Agitator		Impeller
Agitator(r/min)		85	85	85	85
Type of Shaft Seal		212-160	212-160	212-160	212-160
Reducer(kw)		55	55	55	55
D1(mm)		3800	3800	3800	3800
D2(mm)		4000	4000	4000	4000
H1(mm)		294	294	294	294
H2(mm)		5720	6660	7660	8380
H3(mm)		2610	2610	2610	2610
H4(mm)		700	1000	1350	1500
H5(mm)		300	300	300	300
H(mm)		9034	9974	10974	11694
d(mm)		1700	1700	1700	1700
(mm) Centre Circle of Vent		2800	2800	2800	2800
Discharge Valve		DN150/100	DN150/100	DN150/100	DN150/100
(kg)Total Weight		29450	32250	34870	40800
Type of Supporting		Bracket Support
B(φ mm) Centre Circle of Supporting		2520 8-φ30	2520 8-φ30	2520 8-φ30	2520 8-φ30

Series

Shaft Hole

Manhole

Thermometer Hole

Lens Hole

Spare Hole

Discharge Hole

Nozzle Hole

Water,Gas Inlet Out Nozzle

G

M

T1

T2

S1-2

N1

N2

N3

N4

N5

B

P2

P3

P4

P5

P1

L1-3

FF380

250

600

400

400

150

200

200

200

200

150

150

80

80

80

80

100

100

Closed glass lined reactor is a high silicon ceramic glaze sprayed on the surface of the steel container, metal surface composite material products after high temperature combustion process, glass lined reverse tank lid should be one of the tank. It has the dual advantages of glass stability and metal strength. It is an excellent corrosion resistant chemical equipment. It has corrosion resistance, impact resistance, smooth appearance, insulation, heat resistance, wear resistance and other reliable properties. Because the tank cover and tank body are completely closed and cannot be separated, the closed enamel reactor is suitable for the environment with higher pressure in the tank, which can avoid or reduce leakage; At the same time, due to the limitation of installation size, the mixing slurry in closed enamel reactor is not as large as that in open reactor. Closed glass lined reactor and open glass lined reactor are widely used in chemical, petroleum, medicine, pesticides, food, dyes and other industrial processes. It is an ideal equipment for hydrolysis, neutralization, crystallization, mixing and emulsification.

---
