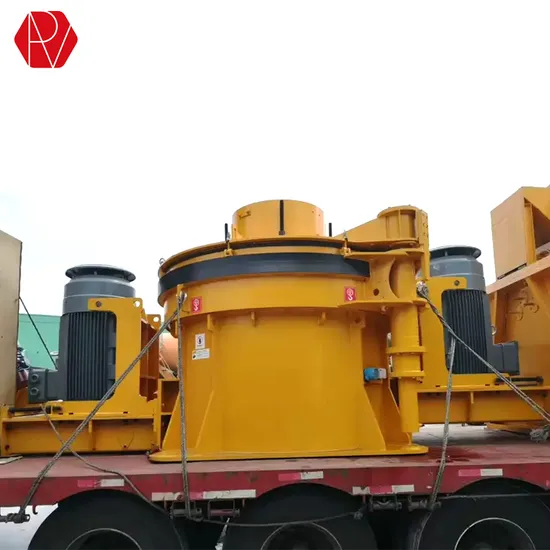

Small mini artifical vsi crusher quarry rock on steel mini sand maker machine

Product Description

TV-V Vertical shaft impact crushers use high-speed rotor or heavy duty open tables. The machines offer in a variety of closed rotor and open table configurations. All crushers are convertible between three styles of crushing chamber designs for maximum flexibility. Configurations options include open shoe table and anvil ring, enclosed rotor and anvil ring, enclosed rotor and rock shelf. This maximizes flexibility allows the crusher to be configured as needed with the highest performance possible. modular design offers maximum application versatility.

Model	MAX POWER ALLOWED		* WEIGHT		** MAX FEED SIZE	SPEED RANGE	*** MAX CAPACITY
	HP	kW	LBS	KG	MM	RPM	STP	MTPH
TV65V-ROR-SD	220	160	17688	8040	up to 40	1800-2700	200	180
TV65V-ROS-SD	220	160	17688	8040	up to 40	1800-2700	200	180
TV85V-ROR-SD	300	220	26180	11900	up to 50	800-1800	350	315
TV85V-ROR-DD	150×2	110×2	29040	13200	up to 50	800-1800	400	360
TV85V-ROS-SD	350	250	30580	13900	up to 40	800-1800	350	315
TV85V-ROS-DD	200×2	160×2	34056	15480	up to 40	800-1800	400	360
TV85V-SOS-SD	350	250	31460	14300	up to 90	800-1400	350	315
TV85V-SOS-DD	250×2	200×2	35156	15980	up to 90	800-1400	500	450
TV95V-ROR-SD	400	315	28248	12840	up to 63	800-1800	400	360
TV95V-ROR-DD	350×2	250×2	34320	15600	up to 63	800-1800	600	540
TV95V-ROS-SD	400	315	34848	15840	up to 63	800-1800	400	360
TV95V-ROS-DD	350×2	250×2	40920	18600	up to 63	800-1800	600	540
TV95V-SOS-SD	400	315	35948	16340	up to 125	800-1300	400	360
TV95V-SOS-DD	350×2	250×2	42020	19100	up to 125	800-1300	600	540

* Machine weight shown does not include drive motor package
** Max Feed size; longest one way dimension-is subject to; appliction, RPM required and power installed.
*** Results may vary depending on feed material gradation, moisture content, friability, RPM required, power installed, and application department for specific capacity for your application.
Steel on Steel "SOS",Rock on Steel "ROS",Rock on Rock "ROR

Model	A	B	C	D
TV65V	2891mm	n/A	1800mm	2443mm
TV85V	3645mm	5035mm	2240mm	2794mm
TV95V	3700mm	5035mm	2240mm	2905mm

Hangzhou Cohesion Technology CO.,LTD has been specializing in manufacturing and supplying mining equipment and the relevant parts for over 20 years. With the good quality and professional service, Hangzhou Cohesion Technology has won the fame in the industry of crushing machinery globally.
Our products include: jaw crushers, cone crushers, impact crushers, vibrating feeders, vibrating screens, belt conveyors, crushing plant, dust collector & etc. Our technical team can customize for your crushing and screening plant based on your requirements.
The crusher parts we produce almost cover all the famous brands, including: Met.so, Sandvik, Terex, Telsmith, Hazemag, Kleemann, Trio, Symons, Shanbao, Shibang & etc.
We are dedicated to providing "the one-stop solution service" for mining equipment and the relevant parts. We are aiming to make our customers' job easier and to make their business more successful.

---
